large red 5mm ultra bright led

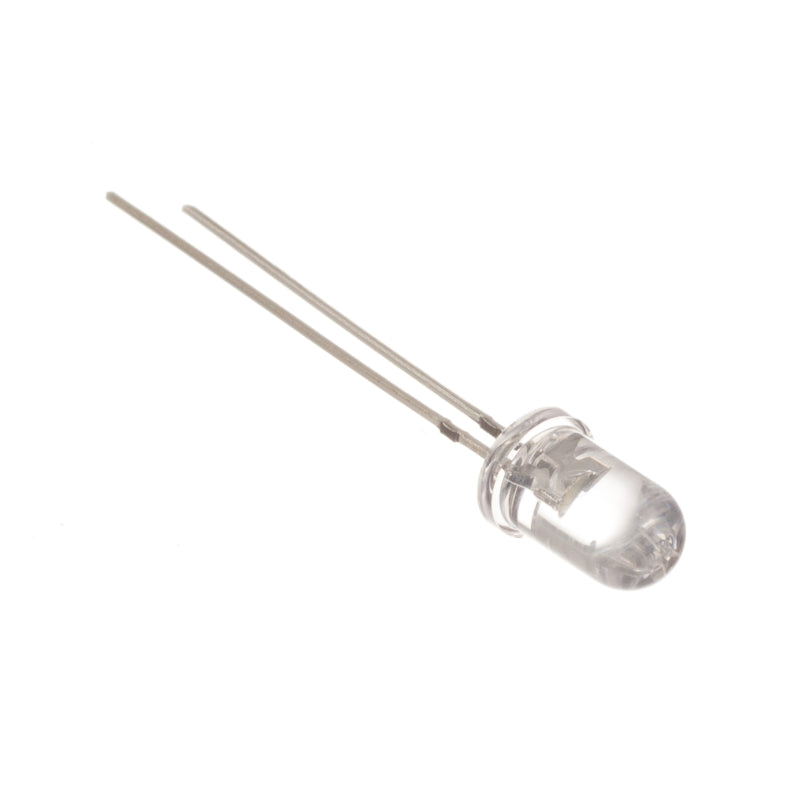

Red 5mm Water Clear LED - 30deg - 1000mCd, pack of 50

Stock code: 3507
Pricing:Ex VATInc VAT
1+£4.50
(excl. VAT)
£5.40
(excl. VAT)

In stock

Decrease product quantity. Increase product quantity.
Calculate shipping price

Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.

SKU: 3507 Categories: , , Tags: , , , , , , Brand:

Red 5mm bike light LED with a viewing angle of 30 degrees.

Luminous intensity 1000mCd.

Pack of 50.

Technical Information

AttributeValue
Forward voltage drop 1.85V.
Viewing angle 30 degrees.
Max forward current 30 mA.
Luminous intensity 1000 mCd (@20mA).
Lens types Water clear.
V
mA
V
Ohms
Ohms
Enter the operating voltage, click calculate resistor, and the resistor value to work with the LED described on this page will be shown.

Related resources

This product doesn't have any resources.

Reviews

There are no reviews yet.

Be the first to review “Red 5mm Water Clear LED – 30deg – 1000mCd, pack of 50”

Your email address will not be published. Required fields are marked *

Questions and answers

    I am thinking of buying some 5mm led bulbs to use in a science project with children in my class. They will need to make a circuit to light up the bulb. Another teacher said she did thus using a cell battery - a cr2032 I think. Will this be the right battery to use with these bulbs and would they work also with the colour changing bulbs? Thank you, Abi
  1. 0 votes
    Q I am thinking of buying some 5mm led bulbs to use in a science project with children in my class....... Read more
    Asked by Abi on November 7, 2011 12:00 am
    Answered by the admin The ultra-bright red LED has a forward voltage drop of about 1.9V so in theory with a 3V CR2032 cell you would want to use a current limit resistor something like a 68 ohm or a 100 ohm. However the coin cell can only deliver a limited amount of current so in reality you are often able to get away without using a current limit resistor. The colour changing LED is rated between 2.7V and 5V so would work fine off a coin cell battery, though it won't be at full brightness again because the coin cell won't deliver enough current to run at full brightness, but it will still work fine.
