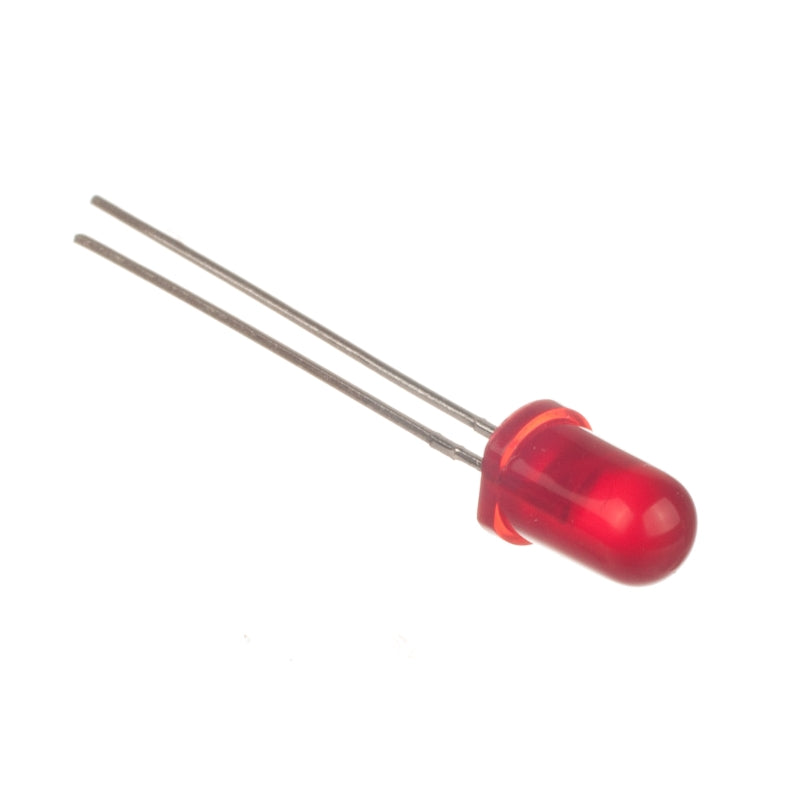

large red 5mm led

Red 5mm Diffused LED - 275mCd

Stock code: 3504
Pricing:Ex VATInc VAT
1+£0.10
(excl. VAT)
£0.12
(excl. VAT)
10+£0.06
(excl. VAT)
£0.07
(excl. VAT)
100+£0.05
(excl. VAT)
£0.06
(excl. VAT)
1000+£0.04
(excl. VAT)
£0.05
(excl. VAT)

In stock

Decrease product quantity. Increase product quantity.
Calculate shipping price

Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.

SKU: 3504 Categories: , , Tags: , , , , , Brand:

Red 5mm standard diffused LED with a viewing angle of 60 degrees.

Luminous intensity 275mCd.

Click here to download a datasheet pdf_icon.gif

Technical Information

AttributeValue
Forward voltage drop 2.1V.
Viewing angle 60 degrees.
Typical forward current 20 mA.
Max forward current 25 mA.
Luminous intensity 275 mCd (@20mA).
Lens types Diffused.
V
mA
V
Ohms
Ohms
Enter the operating voltage, click calculate resistor, and the resistor value to work with the LED described on this page will be shown.

Related resources

This product doesn't have any resources.

Reviews

There are no reviews yet.

Be the first to review “Red 5mm Diffused LED – 275mCd”

Your email address will not be published. Required fields are marked *

Questions and answers

    What is the forward current of your Red 5mm Diffused LED - 275mCd, please?Kind Regardsand Season GreetingsPaul
  1. 0 votes
    Q What is the forward current of your Red 5mm Diffused LED - 275mCd, please?Kind Regardsand Season ...... Read more
    Asked by Paul Johnson on January 7, 2020 12:00 am
    Answered by the admin Hi,
    Many thanks for the query.
    The forward voltage is 2.1V and we would recommend 20mA current.
    Thank you
    2. I would like to do an e-textiles product that has two flashing red LEDs. Please could you let me which LEDs I need to buy and whether or not the LEDs each need a resistor. I plan to use a 3V cell battery.Also, do you accept orders on LEA school purchase orders?ThanksJulie
  2. 0 votes
    Q I would like to do an e-textiles product that has two flashing red LEDs. Please could you let me...... Read more
    Asked by Julie Drake on June 29, 2015 12:00 am
    Answered by the admin We sell a red flashing LED which is suitable for use with the e-textiles produces, 3538-red-flashing-5mm-water-clear-led-30deg-3500mcd we also sell this in a kit version which includes everything you need to make a simple kit, 2702-electro-fashion-sewable-led-kit. We do accept purchase orders from schools, which can be sent to the sales email
    3. Have purchased some 3504 but need to know the wattage. Can you advise please
  3. 0 votes
    Q Have purchased some 3504 but need to know the wattage. Can you advise please
    Asked by keith on April 30, 2014 12:00 am
    Answered by the admin The power or wattage is just the current x voltage. So 0.025A x 2.1V = 0.0525W
