large colour changing 5mm led

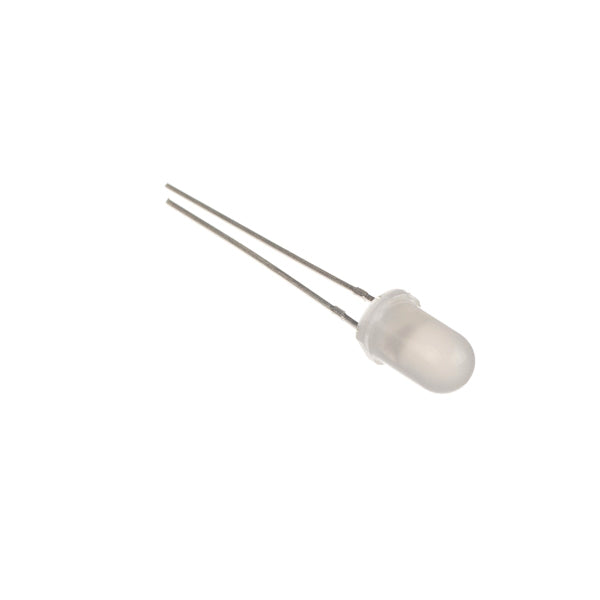

Colour Changing 5mm Diffused LED - 540mCd

Stock code: 3591
Pricing:Ex VATInc VAT
1+£0.50
(excl. VAT)
£0.60
(excl. VAT)
10+£0.40
(excl. VAT)
£0.48
(excl. VAT)
100+£0.35
(excl. VAT)
£0.42
(excl. VAT)
500+£0.30
(excl. VAT)
£0.36
(excl. VAT)

In stock

Decrease product quantity. Increase product quantity.
Calculate shipping price

Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.

SKU: 3591 Categories: , , , , , Tags: , , , , , , Brand:

This LED slowly cycles through various colours, making it ideal for mood lighting, toys or ornaments.

Operating voltage: 2.8V to 5V (this LED does not require a current limit resistor)
Current (ave): 20mA
Brightness: Red: 330 mCd Blue 500 mCd Green 750 mCd
Lens: Diffused
Manufacturer part:  OSTD1DA5B32A

Click here for a tutorial describing how colour changing LEDs work.

Related resources

This product doesn't have any resources.

Reviews

There are no reviews yet.

Be the first to review “Colour Changing 5mm Diffused LED – 540mCd”

Your email address will not be published. Required fields are marked *

Questions and answers

    Will two AA batteries be sufficient to light this?
  1. 0 votes
    Q Will two AA batteries be sufficient to light this?
    Asked by Martin Gilfillan on July 8, 2019 12:00 am
    Answered by the admin Hi Martin,

    Thank you for your question that should work as the LED runs from 2.8V to 4.5V and 2 x AA would supply about 3V so should be fine.

    Best Regards

    Cullen
    2. I need to have 6 of these running off a 12volt power supply .What resistor will i need if I wire them in parallel
  2. 0 votes
    Q I need to have 6 of these running off a 12volt power supply .What resistor will i need if I wire ...... Read more
    Asked by Tony Fellows on March 31, 2017 12:00 am
    Answered by the admin Hi Tony, The issue with connecting these to a supply voltage higher than 5V and then trying to limit this using a resistor is that the LED works by turning on different amounts of red, green & blue LEDs therefore to get red just the red LED is on to get purple the red and blue LED are on. This means that the current consumption of the LED when purple will be twice the current of the red as twice as many colours are on. The way you would normally work out the current limit resistor is to look at how much current the LED takes and the voltage that would drop across the resistor, the issue is that whilst there would be 4V over the resistor the current is variable. This means that you can’t work out what the value of the resistor using theory. The better option is to use a 5V regulator to drop the 12V’s down to the 5V supply that these LED’s can handle.
    3. If i wire these in parallel to your usb power cable (https://www.kitronik.co.uk/4101-usb-power-lead.html) would i need a resistor and if so which is best?
  3. 0 votes
    Q If i wire these in parallel to your usb power cable (https://www.kitronik.co.uk/4101-usb-power-le...... Read more
    Asked by Sam on September 22, 2016 12:00 am
    Answered by the admin Hi Sam, The colour changing LED’s are rated to 5V’s so you wouldn’t require a resistor for these. In terms of putting them in parallel you would need to make sure that you have enough current to supply the LED’s. Each LED takes between 20-25mA, and some of the colours can take up to 50mA’s.
    4. I would like to wire 40 of these in parallel for use as Christmas tree lights but I am not sure about the viewing angle.
  4. 0 votes
    Q I would like to wire 40 of these in parallel for use as Christmas tree lights but I am not sure a...... Read more
    Asked by Andrew Noble on April 21, 2014 12:00 am
    Answered by the admin The viewing angle is 30 degrees. Just be aware that if you are using 40 of them then you will need at least a 1A power supply.
