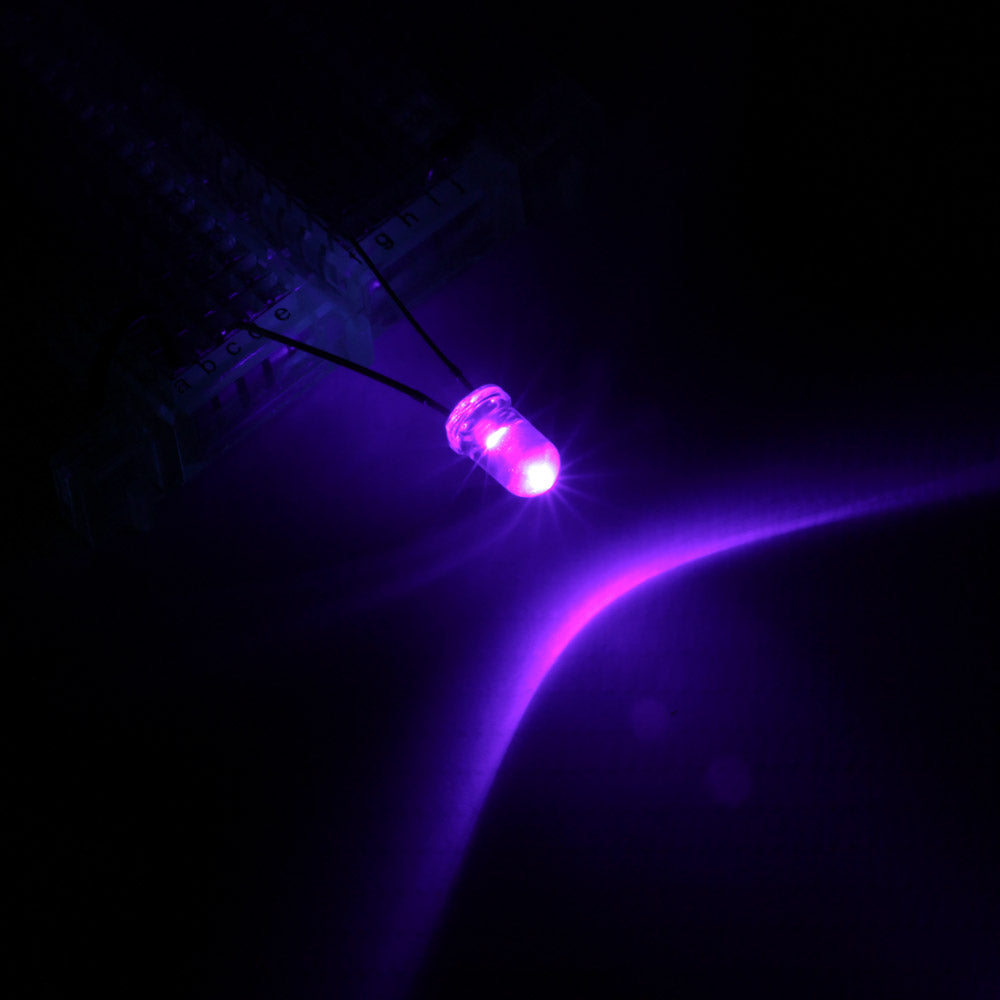

UV 5mm Water Clear LED - 15deg - 5mW
UV 5mm Water Clear LED - 15deg - 5mW - Image 2

UV 5mm Water Clear LED - 15deg - 5mW

Stock code: 3566
Pricing:Ex VATInc VAT
1+£0.48
(excl. VAT)
£0.58
(excl. VAT)
10+£0.39
(excl. VAT)
£0.47
(excl. VAT)
100+£0.32
(excl. VAT)
£0.38
(excl. VAT)
500+£0.28
(excl. VAT)
£0.34
(excl. VAT)

In stock

Decrease product quantity. Increase product quantity.
Calculate shipping price

Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.

SKU: 3566 Categories: , , Tags: , , , , Brand:

This general purpose 5mm UV (ultra violet) LED is ideal for many lighting applications and products such as money checkers. The legs are on a standard 2.54mm spacing.

Forward voltage drop: 3.4 V
Viewing angle: 15 degrees
Max forward current: 30 mA
Luminous intensity: 5mW (radiant flux)
Peak wavelength: 415nm
Lens types: Water clear

Warning: UV radiation can be harmful to your health. Protect your eyes and skin during operation. Do not look directly at the LED during operation as this can damage your eyes. Ensure children are supervised during use.

Technical Information

AttributeValue
Forward voltage drop 3.4V.
Viewing angle 15 degrees.
Typical forward current 20 mA.
Max forward current 30 mA.
Luminous intensity 5mW (radiant flux)
Lens types Water clear.
V
mA
V
Ohms
Ohms
Enter the operating voltage, click calculate resistor, and the resistor value to work with the LED described on this page will be shown.

Related resources

This product doesn't have any resources.

Reviews

There are no reviews yet.

Be the first to review “UV 5mm Water Clear LED – 15deg – 5mW”

Your email address will not be published. Required fields are marked *

Questions and answers

    Can 1 or more of these leds be used with the electro fashion switched power board?
  1. 0 votes
    Q Can 1 or more of these leds be used with the electro fashion switched power board?
    Asked by Juan on March 28, 2017 12:00 am
    Answered by the admin Hi Juan, Normally these wouldn’t be used in an electro-fashion project with the fact that UV radiation can be harmful to your health. As such protection for your eyes and skin would be needed. Also they require 3.4V as a forward current, a coin cell only provides 3V, so you may be able to get the LED to turn on, but it may turn off before the battery is completely empty. Putting the LED’s in parallel would allow you to provide 3V’s to all of them. You could probably put 4-5 in parallel, but battery life would be very short before the voltage supplied wouldn’t be enough.
