RGB 5mm Water Clear LED - 45deg - 2100mCd - Cmn Cathode

Stock code: 3574
Pricing:Ex VATInc VAT
1+£0.50
(excl. VAT)
£0.60
(excl. VAT)
10+£0.40
(excl. VAT)
£0.48
(excl. VAT)
100+£0.35
(excl. VAT)
£0.42
(excl. VAT)
500+£0.30
(excl. VAT)
£0.36
(excl. VAT)

In stock

Decrease product quantity. Increase product quantity.
Calculate shipping price

Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.

SKU: 3574 Categories: , , Tags: , , , , , Brand:

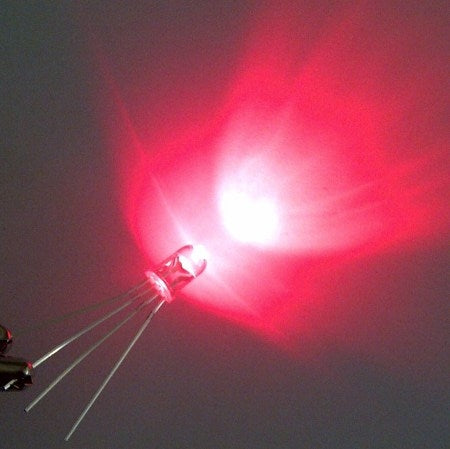

This 5mm RGB LED contains three LED elements (red, green and blue). Each element can be controlled independently. By varying the amount by which each element is turned on any colour can be created. They are ideal for design colour controlled lighting effects.

This LED has a common cathode  which is the longest leg (negative).

Download datasheet for this part pdf_icon.gif

Forward voltage, red element: 1.9 – 2.5V
Brightness, red element: 1500 – 2300 mCd
Forward voltage, green element: 2.9 – 3.5V
Brightness, red element: 2000 – 2700 mCd
Forward voltage, blue element: 2.9 – 3.5V
Brightness, blue element: 1500 – 2200 mCd

Angle: 45 degrees
Lens: Water clear

Related resources

This product doesn't have any resources.

Reviews

There are no reviews yet.

Be the first to review “RGB 5mm Water Clear LED – 45deg – 2100mCd – Cmn Cathode”

Your email address will not be published. Required fields are marked *

Questions and answers

    Hello, I have just bought some of these LEDs, but I was wondering what common cathode means. Please could someone help me? Thank you!
  1. 0 votes
    Q Hello, I have just bought some of these LEDs, but I was wondering what common cathode means. Plea...... Read more
    Asked by Bradley Michael Collins on February 22, 2017 12:00 am
    Answered by the admin Hi Bradley, Common Cathode simply means that all three LED’s within the package all share the same negative leg. As such you would connect the common cathode to the negative of the circuit, then you would connect each remaining leg through a resistor to the input of what device you are using to turn the signal high and low. We have used an RGB in the inventor’s kit in this experiment, inventors-kit-experiment-10-help
    2. HiI understand that single colour leds should normally be connected in series with an appropriate resistor. Does the same apply to these rgb leds and if so what is the appropriate value for the resisitor for each 'leg' of the led assuming a 3v battery?Thank you.
  2. 0 votes
    Q HiI understand that single colour leds should normally be connected in series with an appropriate...... Read more
    Asked by Paul on December 9, 2016 12:00 am
    Answered by the admin Hi Paul, Yes you would still need to put a resistor in line will each leg of the RGB LED apart from the common leg. We use a similar RGB LED in the inventor’s kit (this uses a between 3 and 5V’s as a supply) and use a 470 Ohm resistor to protect each leg of the LED.
    3. Hi Kitronic,I have built a model ferris wheel and wish to add 5mm led lights, where I can select the colour I want.In addition to the led I will require some form or chrome mount or bezel. I intend to use a battery supply as the wheel stands alone.As you can guess I am far from an electronic engineer and would be most grateful for any advice.Many thanks for taking the time to read this.RegardsTrev
  3. 0 votes
    Q Hi Kitronic,I have built a model ferris wheel and wish to add 5mm led lights, where I can select ...... Read more
    Asked by Trevor Thomas on February 10, 2016 12:00 am
    Answered by the admin Hi Trevor, the easiest way to probably do this so you can select which colour you have on is to use three toggle switches, so you would connect the one switch to each leg associated to turning a colour on and off. This way when you switched the toggle on you would turn that colour of the LED on. The fourth leg of the LED would be connected to ground on the circuit and this would need to be constantly connected.
