Kitronik Micro USB Lamp Kit - 1W LED V2.0

Stock code: 2161

Pricing:	Ex VAT	Inc VAT
1+	£3.85 (excl. VAT)	£4.62 (excl. VAT)
5+	£3.10 (excl. VAT)	£3.72 (excl. VAT)
50+	£2.90 (excl. VAT)	£3.48 (excl. VAT)
200+	£2.76 * (excl. VAT)	£3.31 * (excl. VAT)
300+	£2.61 * (excl. VAT)	£3.13 * (excl. VAT)

In stock

Decrease product quantity. Increase product quantity.

Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.

Calculate

Buy locally from a partner

Country:

SKU: 2161 Categories: Easy Build Kits, Lighting Kits & Modules, Electronic Project Kits Tags: Easy Build Kits, Key stage_KS3, Kit manufacturer_Kitronik, Kit module_Self assembly kit, Kit packaging_Grip seal bag, Kit resources_Detailed notes, Kit type_Electronic, Lighting Kits & Modules, Programmable kit_No Brand: Kitronik Ltd

Kitronik Micro USB Lamp Kit - 1W LED V2.0 plus 5V power supply

£9.05

ex VAT

Kitronik Micro USB Lamp Kit - 1W LED V2.0

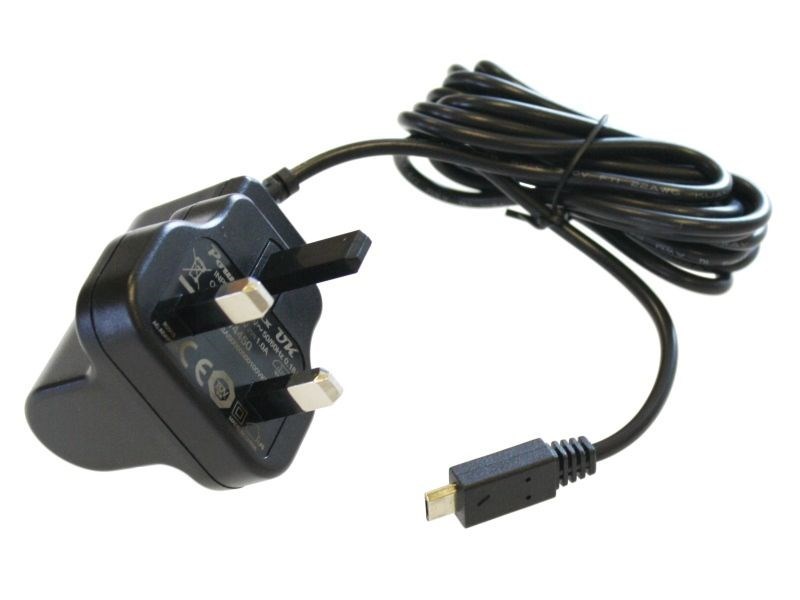

5V 1A Micro USB UK Mains Wall Power Supply

Add both to Cart

Kitronik Micro USB Lamp Kit - 1W LED V2.0 plus 5V power supply and soldering starter kit

£21.30

ex VAT

Add all to Cart

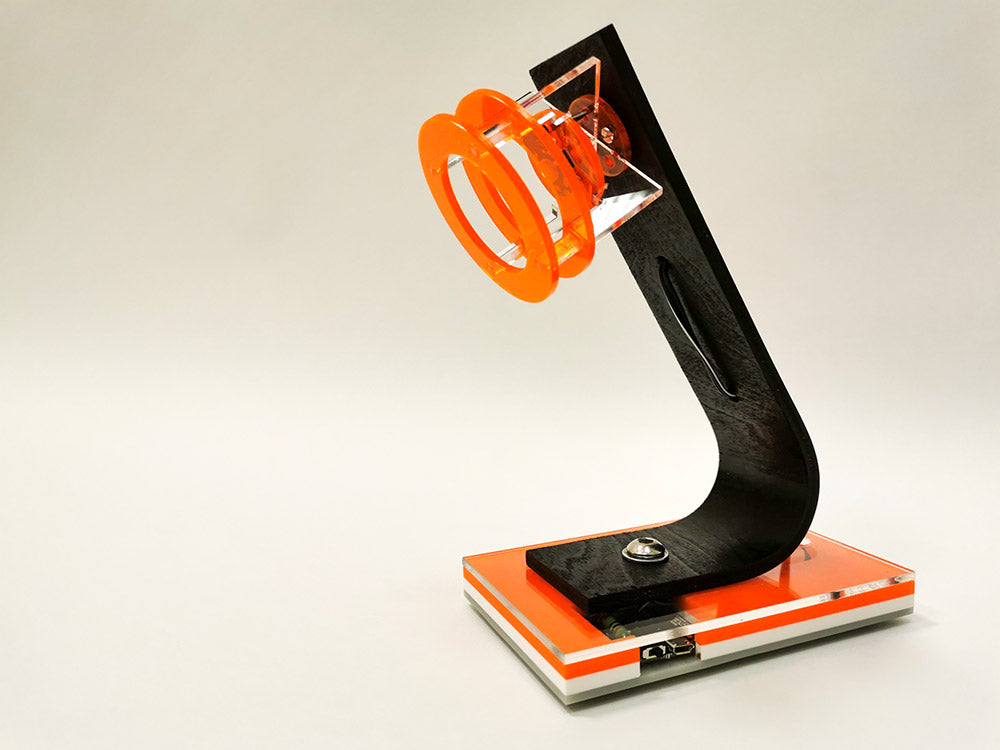

Our newest version of our very popular Micro USB Lamp Kit allows you to build an economic mains powered lamp that takes power from a standard Micro USB phone charger (available separately). The previous version was built using a breakout board, V2.0 features a board designed specifically for purpose which means that the kit is now much neater and easier to build.

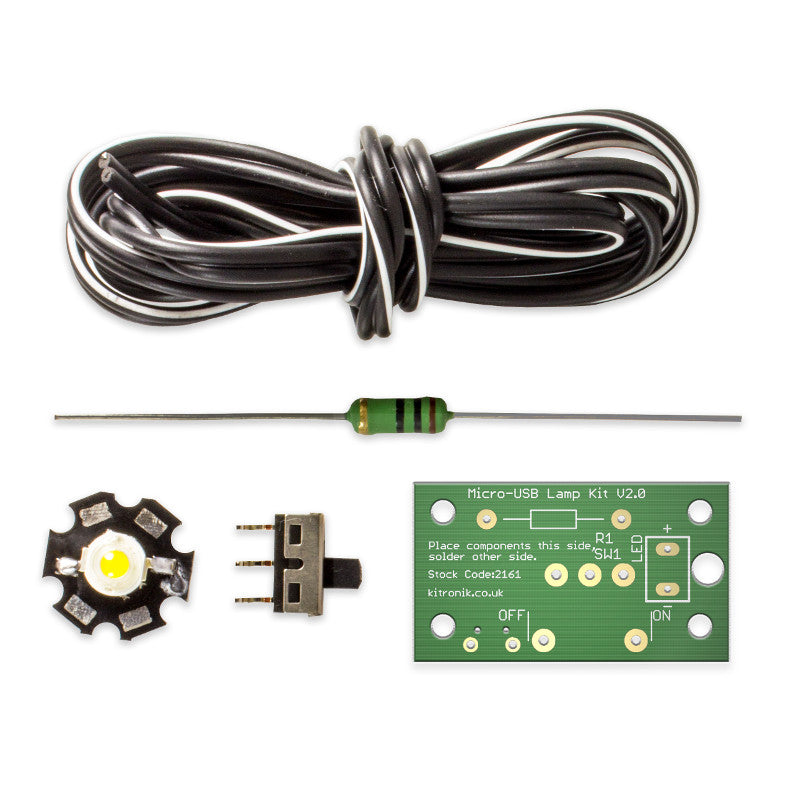

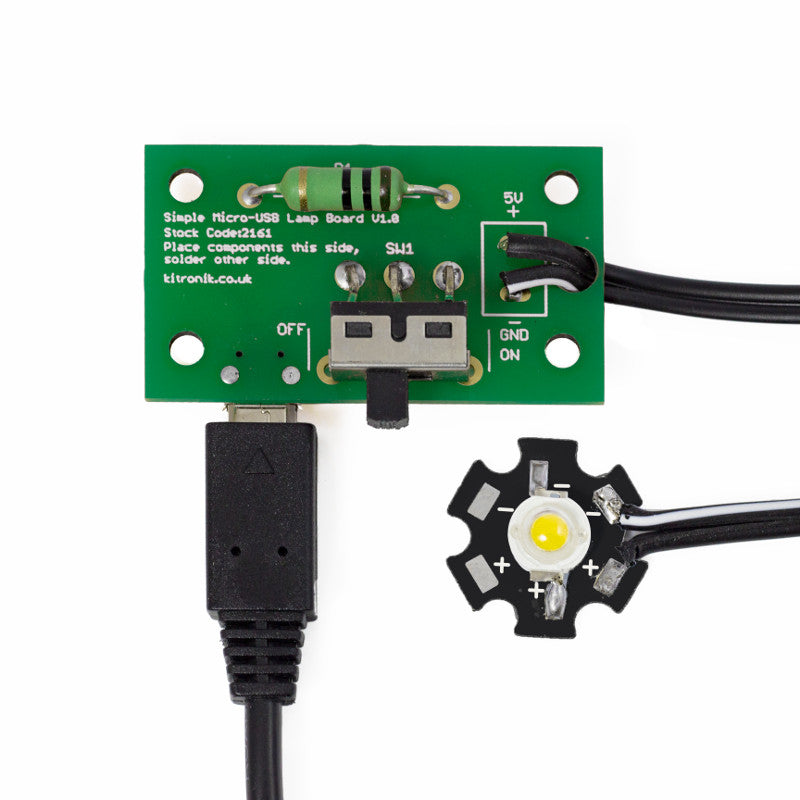

The kit comprises a very bright 1W Power LED which connects (with the cable provided) to a PCB that has a power switch, Micro USB connector and power resistor.

All that is required to assemble the kit is to connect the LED to the desired length of cable and solder the other end of the cable, the resistor, and the switch to the board.

Features:

Easy to build lamp kit.
Ultra-bright 1W Power LED.

Dimensions:

Max Built Height: 12mm.
PCB Length: 44mm.
PCB Width: 25mm.
PCB Height: 1.5mm.

Video:

Requires:

Resources:

Documents & downloads

Technical Information

Attribute	Value
PCB Length	44mm.
PCB Width	25mm.
PCB Component Count	3.
Voltage Nominal	5V.
Voltage Range	3.5V to 6V.
Current Max at Nominal Voltage	0.3A.

Related resources

Reviews

There are no reviews yet.

Be the first to review “Kitronik Micro USB Lamp Kit – 1W LED V2.0”

Questions and answers

Hi, what are the dimensions of the LED it self?

0 votes

Q Hi, what are the dimensions of the LED it self?
Asked by charlie thurston on December 1, 2020 12:00 am

Answered by the admin Thank you for your question, the LED used on this kit is the 1W power LED star. We have a data sheet below for it which covers the various dimensions and technical specs for you.

https://resources.kitronik.co.uk/pdf/Using_a_Kitronik_1W_star_LED.pdf

Hi, I would like to be able to panel mount the usb connector so that I don't have to position the pcb next to the wall of a case. Can you please tell me if this is possible and if so what product would you recommend?

0 votes

Q Hi, I would like to be able to panel mount the usb connector so that I don't have to position the...... Read more
Asked by Hayden on December 13, 2018 12:00 am

Answered by the admin Hi there, Thank you for your question, the USB connector is pre-mounted on the board I am afraid. You could theoretically remove it but it would not be recommended. Best Regards Cullen

Hi, do you sell usb leads for this product. I see you have the mains supply but do you have the USB cable? On its own? Thanks

0 votes

Q Hi, do you sell usb leads for this product. I see you have the mains supply but do you have the U...... Read more
Asked by Terry on November 13, 2018 12:00 am

Answered by the admin Hi Terry, Thank you for your question, we do sell a 1m USB to micro usb cable that would fit this. It is our code 4154 and I have posted a link below for you. https://www.kitronik.co.uk/4154-1m-usb-type-a-to-micro-b-usb-noodle-cable.html Best Regards Cullen

Hi, Can you swap the switch in this kit for a variable resistor to enable dimming? Thanks

0 votes

Q Hi, Can you swap the switch in this kit for a variable resistor to enable dimming? Thanks
Asked by william harding on January 29, 2018 12:00 am

Answered by the admin Hi William, In theory yes you could as long as the potentiometer had a high enough A rating to cope, typically the LED can pull 310mA so it would need to be rated higher than this. However what you would likely find is that it will dim the LED slightly, then just turn it off and wouldn't operate as a normal dimming function as LDs don't dim well.

Hi. I have searched for the cable to accompany this kit but cannot seem to find the right one. Could you give me the code please? Many Thanks.

0 votes

Q Hi. I have searched for the cable to accompany this kit but cannot seem to find the right one. ...... Read more
Asked by Jo Hicks on January 5, 2018 12:00 am

Answered by the admin Hi Jo, If you are referring to the power cable that is shown in the photo then it is this product, https://www.kitronik.co.uk/2208-5v-1a-micro-usb-uk-mains-wall-power-supply.html. If you mean the cable that connects the power LED star to the board then this is the cable, https://www.kitronik.co.uk/2448-figure-8-speaker-cable-2x-7x018mm-100m-reel.html.
