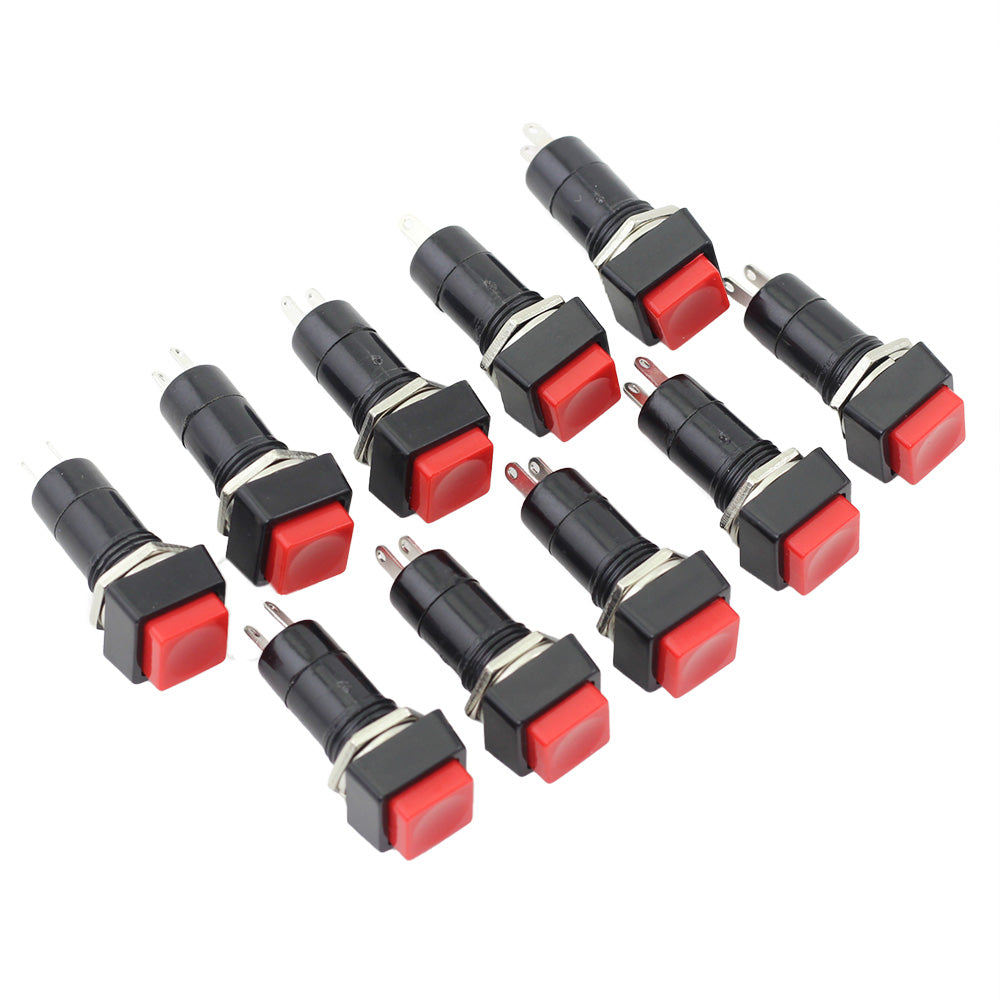

Square Latching Push Button Switch, pack of 10

These high quality on/off SPST (single pole single throw) square latching switches are 38.4mm x 15mm and feature an 11mm x 11mm red button. The panel cut out size for these switches is 12mm. Supplied as a pack of 10

They are rated for a maximum voltage of 250V AC and a maximum current of 1A.

The case is made from Phenolic resin and the push button from ABS. The washer nut is nickel-plated steel and the spring is a stainless steel wire. The button has two solder lug terminals for easy integration into your circuit.

Features:

• These switches are SPST (single pole single throw) square latching switches.
• The button size is 11mm x 11mm.
• They are rated for a maximum voltage of 250V AC and a maximum current of 1A.
• The button has two solder lug terminals.
• The panel cut out size for these switches is 12mm.

Contents:

• 10 x Square Latching Push Button Switch.

Dimensions:

• Length: 38.4mm.
• Width: 15mm.

Requires:

• Soldering Iron.
• Solder.

Resources:

• Datasheet.
