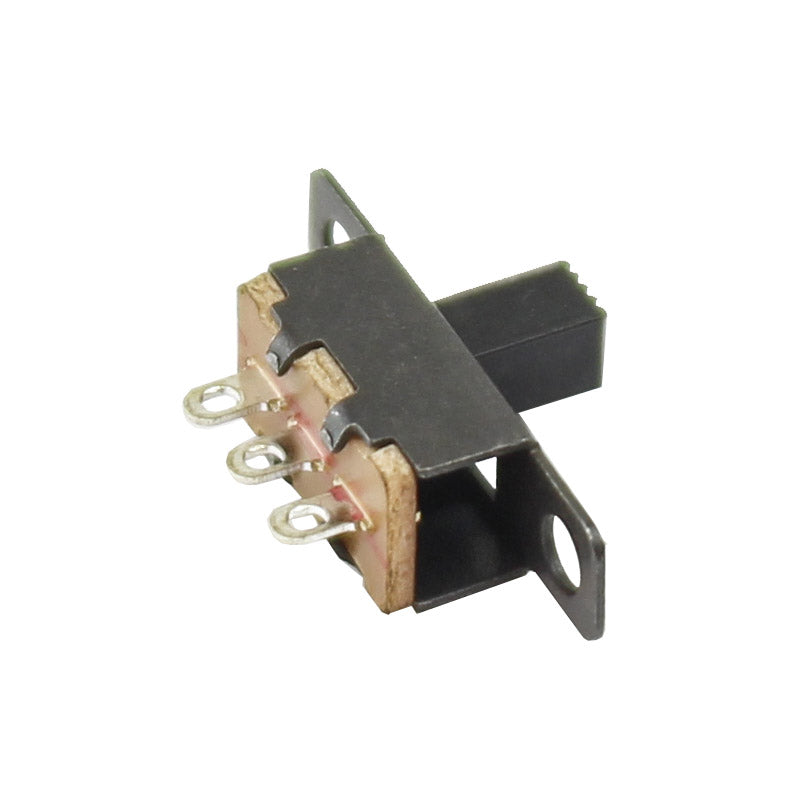

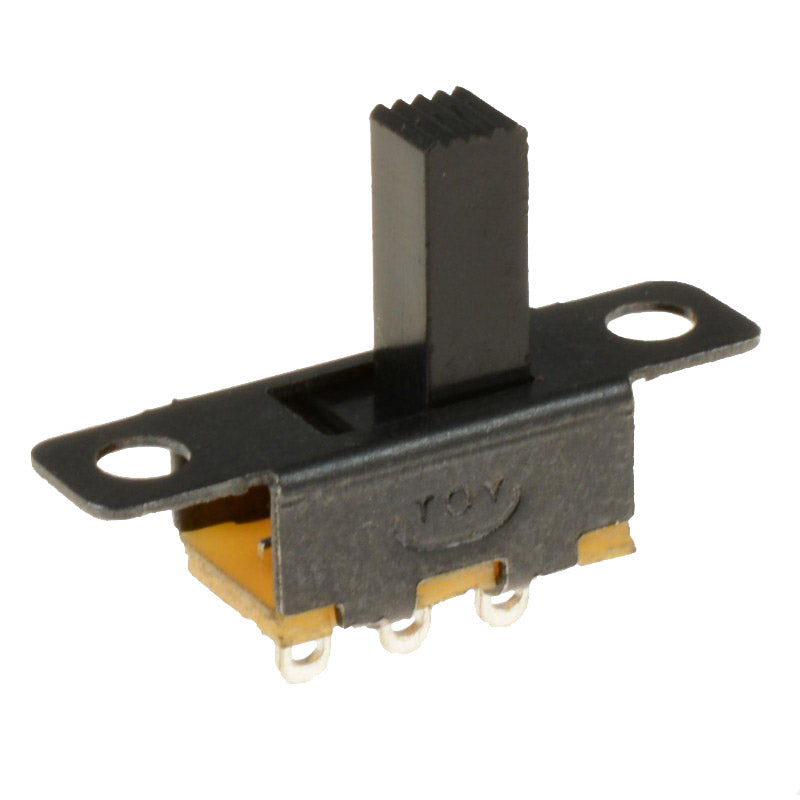

Ultra Miniature SPDT Slide Switch, pack of 10

This Ultra-miniature slide switch with SPDT contacts is suitable for a wide range of applications and is supplied as a pack of 10.

It features solder tag terminals which allow for wires to be easily soldered to the switch, making it perfect for any application that requires a physically small on-on switch located away from the rest of the project/circuits/boards.

SPDT switches, such as this, have three contacts; a common pin and two other pins that via for connection providing and on-on operation. This can be utilised to switch between power sources or to switch between two separate circuits that are connected to the same place/component.

There are two mounting screw holes spaced 15mm apart and the actuator portion of the switch is 7mm tall.

Features:

• Ultra-miniature slide switch with SPDT contacts.
• It features solder tag terminals which allow for wires to be easily soldered to the switch.
• The SPDT provides 3 terminal on-on type switch operation.
• You can switch between power sources.
• You can switch between different circuits attached to the same place/component.
• It features two mounting screw holes with 15mm spacing.
• This switch is supplied as a pack of 10.
• RoHS Compliant.

Contents:

• 1 x Pack of 10 Ultra Miniature SPDT Slide Switches.

Dimensions:

• Length: 20mm.
• Width: 5mm.
• Height: 15mm.
• Actuator Height: 7mm.
• Distance between Mounting Holes: 15mm.

Requires:

• Wire.
• Soldering Iron.
• Solder.
• Wire Cutters.
• Wire Strippers.
