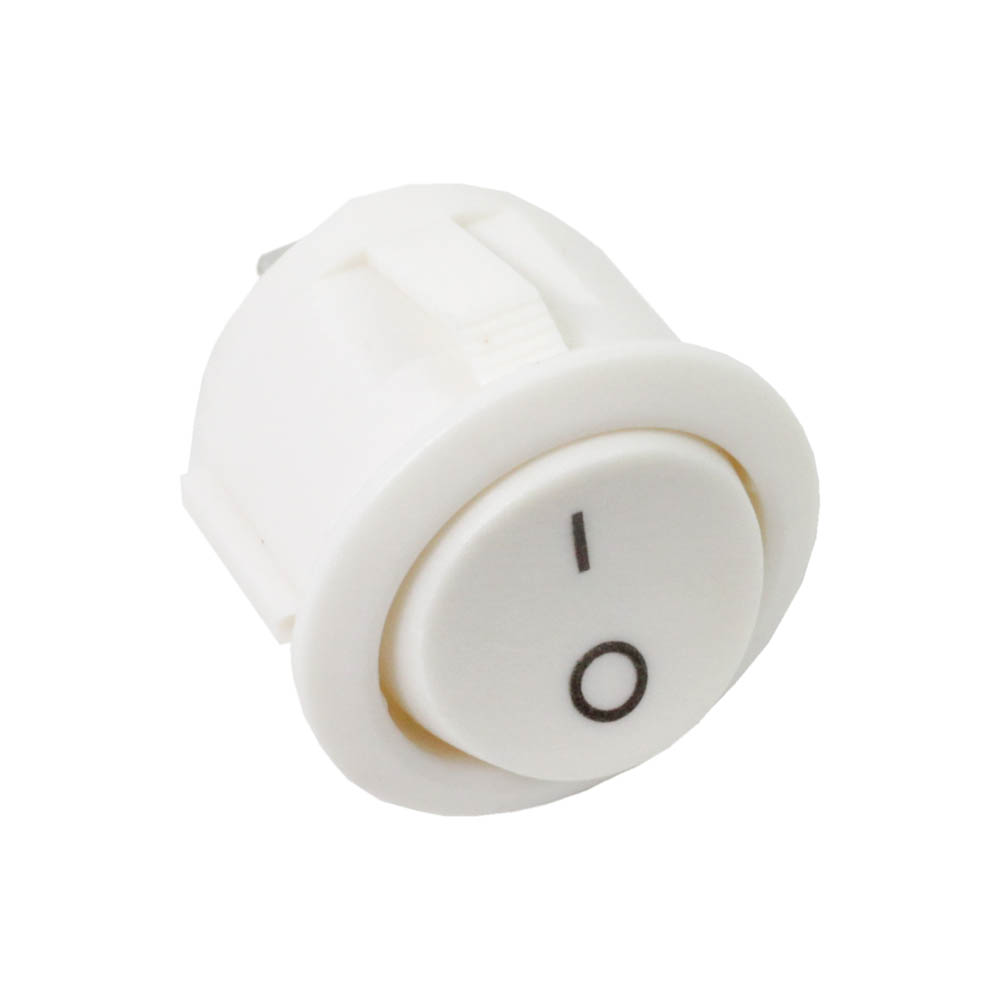

Round White Rocker Switch with SPST contacts and a simple on off action that is suitable for a wide range of applications and is supplied as a pack of 10.

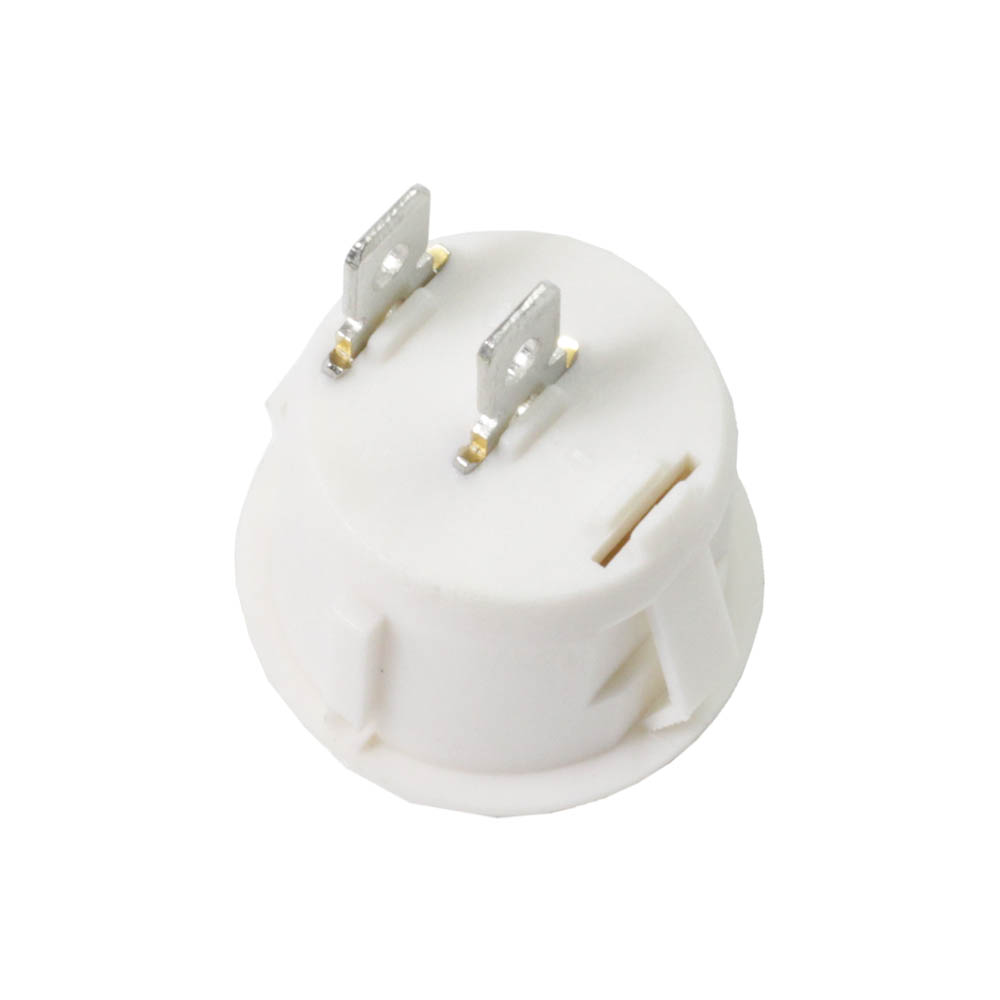

It features two SPST connectors in the form of two 4.8mm quick connect terminals. They can either be soldered to or have the wire twisted around the connectors.
The switch is designed for snap-in mounting which requires a hole of 20mm. This makes it extremely easy to mount to a project as it requires no fixings and the quick connect terminals mean that it can be mounted and connected in seconds.
2 terminal SPST switches, such as this, are the basic on-off style switch that either close or open the circuit.
Features:
- A Round White Rocker on-off Switch with SPST contacts.
- The switch is designed for snap-in mounting which requires a hole of 20mm.
- It features two SPST connectors in the form of two 4.8mm quick connect terminals.
- It requires no additional fixings.
- This switch is supplied as a pack of 10.
- RoHS Compliant.
Contents:
- 1 x Pack of 10 Round White Rocker Switches with SPST contacts.
Dimensions:
- Height: 29.2mm.
- Diameter: 23mm.
- Panel cut out required: 20mm.
