large SPST round rocker switch
large SPST round rocker switch terminals

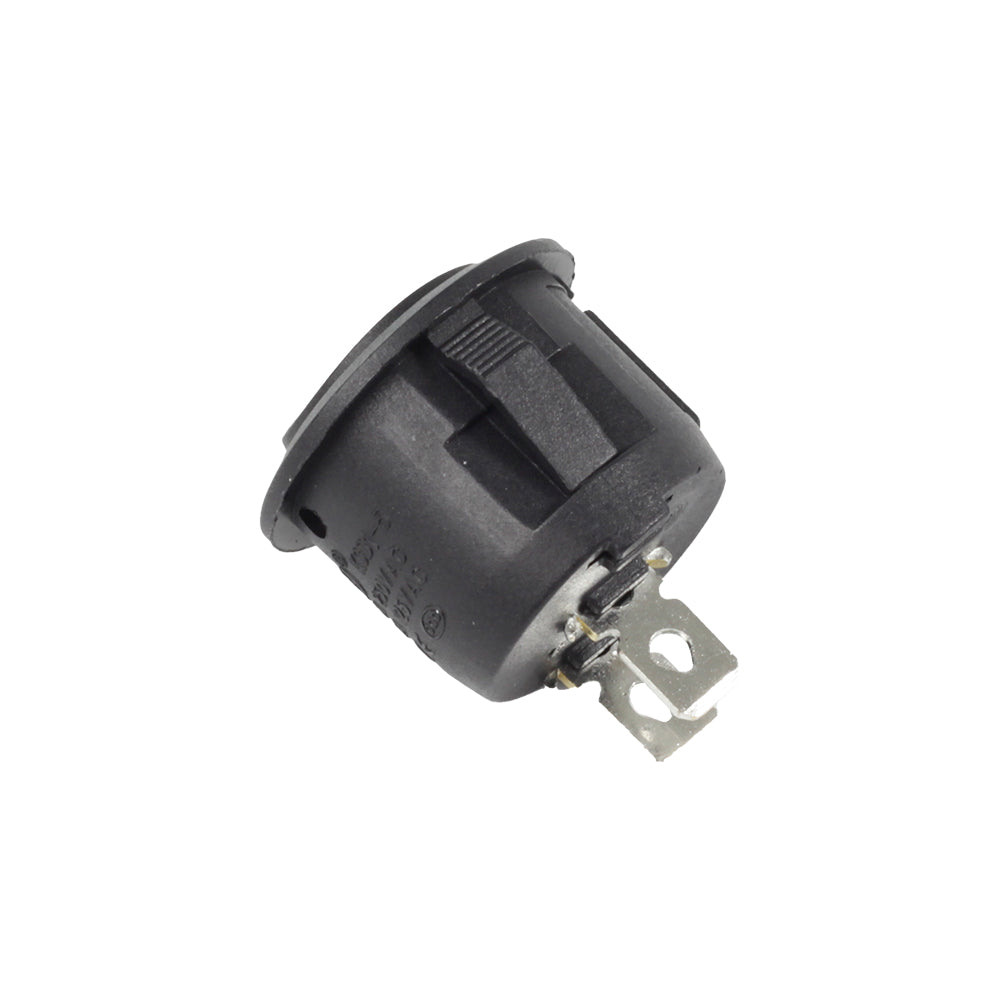

SPST Round Rocker Switch

Stock code: Select Option
Pricing:Ex VATInc VAT
1+£0.45
(excl. VAT)
£0.54
(excl. VAT)
Decrease product quantity. Increase product quantity.
Calculate shipping price

Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.

SKU: 4492203720767 Categories: , , Tag: Brand:

SPST rocker switch black, round, snap fit.

Max voltage = 250V AC. max current = 6A
L 16.5, Dia 23mm.

Click here to download datasheet

Related resources

This product doesn't have any resources.

Reviews

There are no reviews yet.

Be the first to review “SPST Round Rocker Switch”

Your email address will not be published. Required fields are marked *

Questions and answers

    Any idea what size spade connectors would fit the plates at the bottom of this switch?
  1. 0 votes
    Q Any idea what size spade connectors would fit the plates at the bottom of this switch?
    Asked by Ryk Waters on March 8, 2019 12:00 am
    Answered by the admin Hi Ryk,

    Thank you for your email, I am afraid I am not sure but the connectors are approximately 15mm apart. Sorry I could not be more specific.

    best Regards

    Cullen
    2. Does this switch have CE certification?
  2. 0 votes
    Q Does this switch have CE certification?
    Asked by Jack Williams on November 20, 2018 12:00 am
    Answered by the admin Hi Jack,

    Thank you for your question, we have not declared it as CE compliant as the only compliance it needs to meet as a being component is ROHS which it does meet.
    3. Can I use this switch with stereo amplifier prebuilt... if not which switches will work?
  3. 0 votes
    Q Can I use this switch with stereo amplifier prebuilt... if not which switches will work?
    Asked by Rico Young on January 4, 2017 12:00 am
    Answered by the admin Hi Rico, Yes this switch would be fine, you can use the following resource as a guide to show how to connect the switch into the circuit, adding-a-power-supply-and-led-to-your-project-kit
    4. Hi, i currently have my own circuit which consists of a LED Strip and a 9V Battery. I was wondering, if i were to buy a switch which can be used for 12V circuits, would it work with my 9V circuit ? Thanks, Jay
  4. 0 votes
    Q Hi, i currently have my own circuit which consists of a LED Strip and a 9V Battery. I was wonderi...... Read more
    Asked by Jay on April 26, 2014 12:00 am
    Answered by the admin Hi Jay,

    This switch can switch up to 240V AC but the real limiting factor here is the current rating, this switch is rated to 6A. As long as your LED strip draws less than 6A this switch is fine. A 9V battery would be unable to supply 6A so you are ok.
