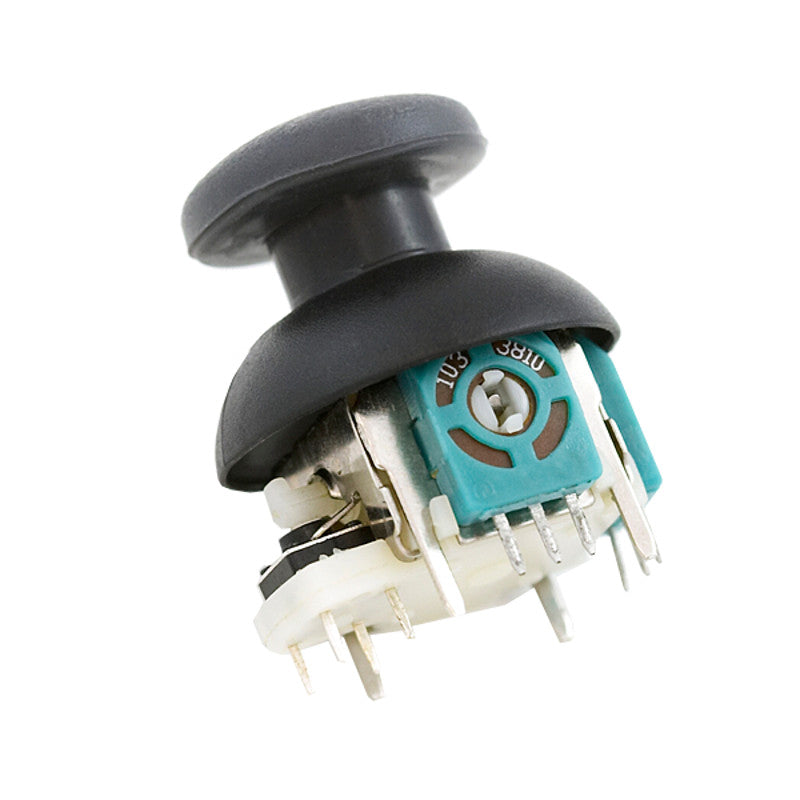

This is a joystick very similar to the joysticks on PS2 (PlayStation 2) controllers. Directional movements are simply two potentiometers – one for each axis. Pots are ~10k each.
This joystick also has a select button that is actuated when the joystick is pressed down.
We also stock the breakout board for this product which you can find here.
Features:
- Similar in feel and look to the joysticks on PS2 controllers.
- Built-in select button, actuated by pressing down the joystick.
- Two potentiometers provide directional (x and y axis) output.
Note:
The diagram below shows the pinouts for this part.
Contents:
- 1 x Thumb Joystick.
Dimensions:
- Height: 31mm.
- Max Width: 26.5mm.
Requires:
Resources:
SparkFun Stock Code:
- COM-09032.
