USB Cables and LED Strip Light (Kit of 50)

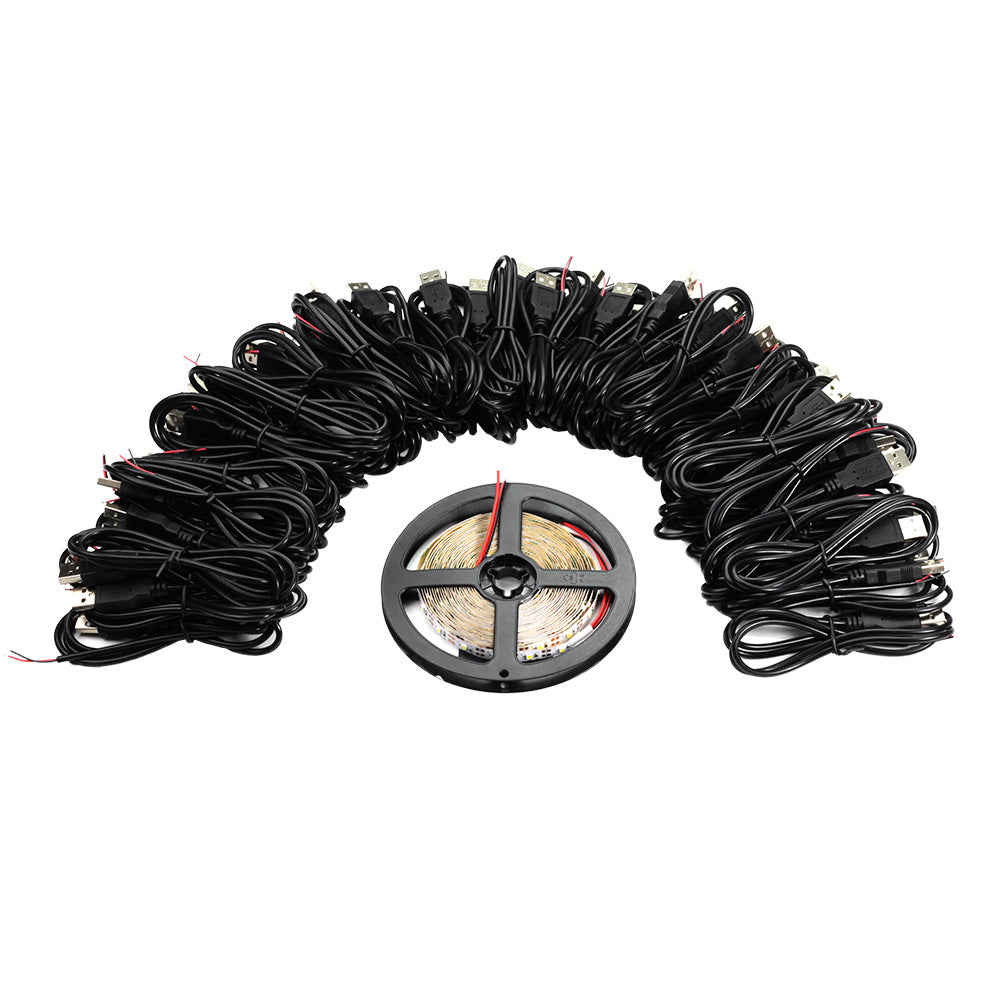

Get lessons moving forward fast with these handy LED classroom kits, comprising USB leads and LEDs. Each kit comes with 50 x USB leads and a reel of 300 LEDs, everything you need for an introductory electronics lesson or for students to use as a platform for designing cases/desk lamps.

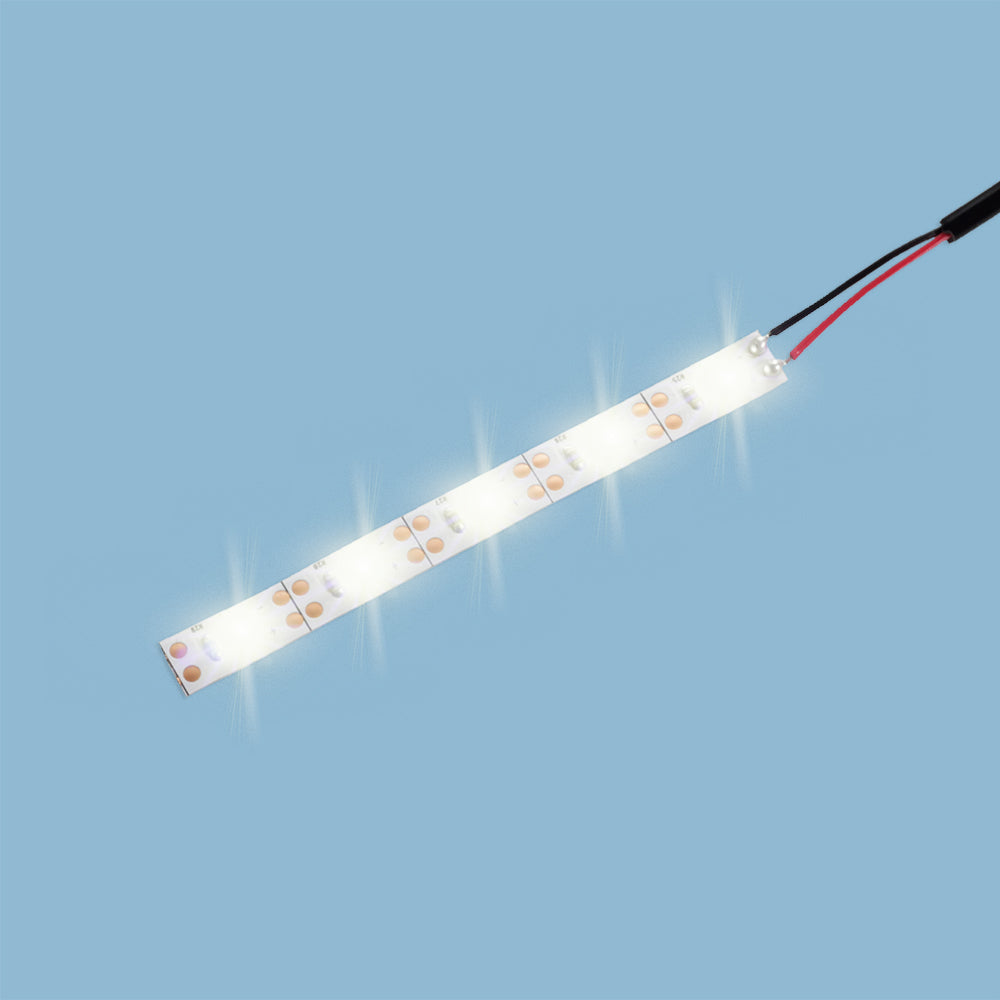

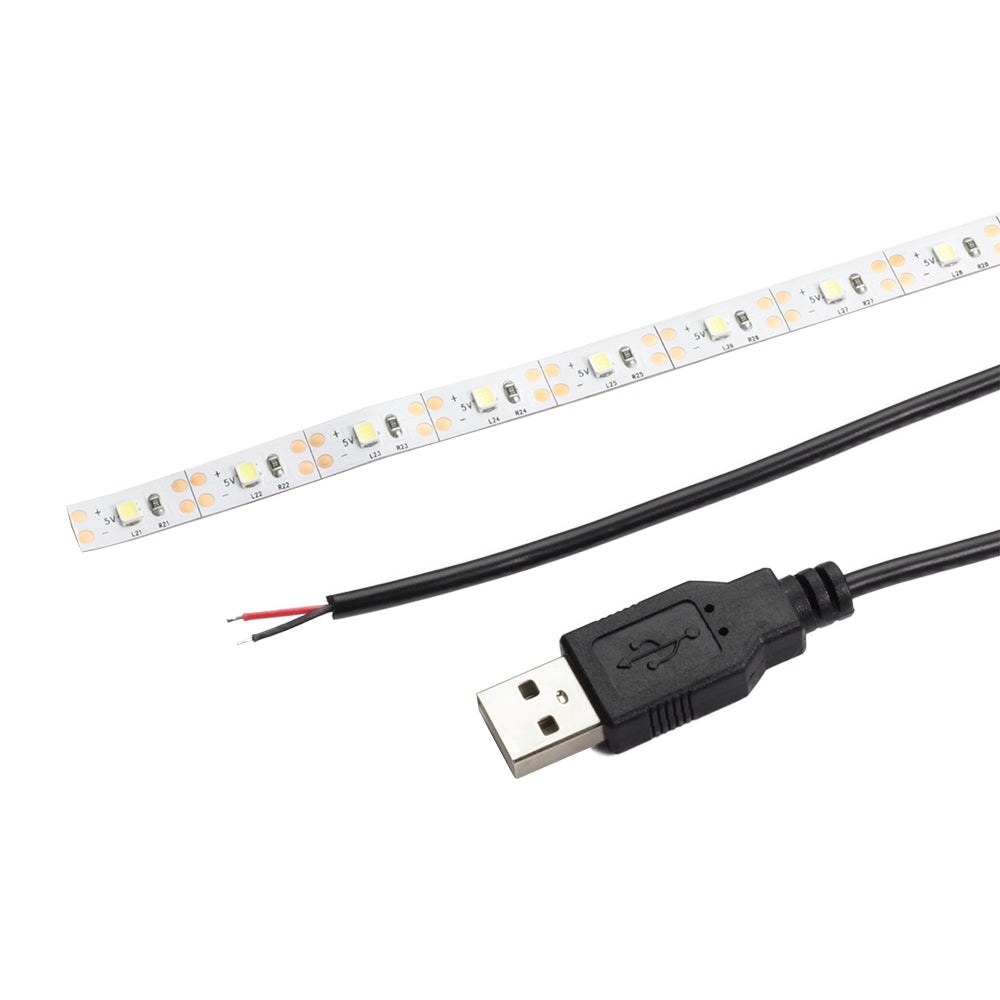

Each reel of 5V White Flexible LED strips is supplied on a 5m roll, each roll containing 300 LEDs. They are extremely versatile and can be used in a wide variety of lighting applications. The 5m white flexible LED strips can be cut to size easily as they are broken up into 300 sections, marked by a cutting line. Each flexible section contains an LED, a limiting resistor, and solder pads. The strips also feature a 3M tape rear side, so the strips can be easily fixed in place to your project. You can achieve a wider spread of LEDs around a project by separating the strips into 1 LED section and rejoining the sections together with lengths of wire.

The USB leads allow you to take power for each project from a PC or power supply. The leads are pre-tinned and a generous 1m long.

Features:

• Kit Features;
• Speed up lesson prep with this handy kit comprising USB leads & LEDs.
• It contains 50 x USB leads and a 5m reel of 300 LEDs.
• A simple kit, perfect for teaching basic electronics or as a platform for design lessons.
• Enough for two complete lessons or one lesson with spares.
• They can be easily disassembled and reused.
• LED Features;
• 5V White Flexible LED strips on a 5m roll, with 300 LEDs per roll.
• The LEDs are high flux surface mounted 2835 LEDs.
• They are extremely versatile and can be used in a wide variety of lighting applications.
• The reels can easily be split into single LED sections, along the clearly marked cutting line.
• Each flexible section contains an LED, a limiting resistor, and solder pads.
• It also features a 3M tape rear side for easy fixing.
• The strips require a 5V supply.
• Each single LED section is rated for a maximum supply of 21A@5V.
• The LEDs have a viewing angle of 120 degrees.
• 1440-1560 lumens.
• USB Lead Features;
• Take power for your project from a PC.
• Pre-tinned colour-coded leads.
• Ideal for use with a 5V mains power supply.

Contents:

• 50 x USB Power Leads.
• 1 x White Flexible LED strip, 300 LEDs, 5VDC, 5m Reel

Requires:

• Soldering Iron.
• Solder.

Resources:

• LED Datasheet.
