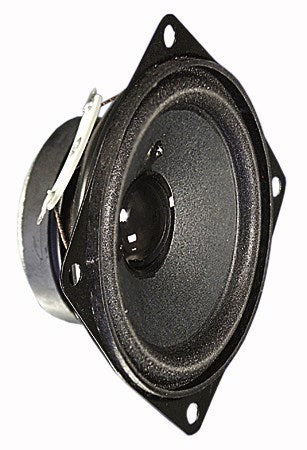

large 5W 65cm full range 4ohm speaker

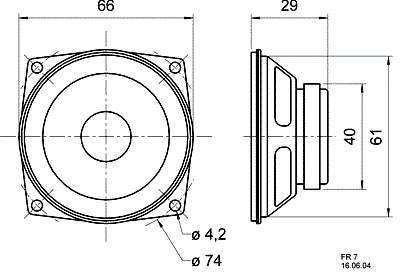

additional 5W 6.5cm full range 4ohm speaker dimensions
additional 5W 65cm full range 4ohm speaker directivity
additional 5W 65cm full range 4ohm speaker frequency and impedence

5W 4 Ohm 65mm Full Range Speaker

Stock code: 3315
Pricing:Ex VATInc VAT
1+£5.15
(excl. VAT)
£6.18
(excl. VAT)
10+£4.75
(excl. VAT)
£5.70
(excl. VAT)
100+£4.45
(excl. VAT)
£5.34
(excl. VAT)

In stock

Decrease product quantity. Increase product quantity.
Calculate shipping price

Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.

SKU: 3315 Categories: , , Tag: Brand:

The FR7 unit is a high quality 6.5 cm (2.5″) full-range 4 ohm speaker from Visaton, with minimal mounting depth and small magnet. Balanced frequency response and high efficiency. Very good high range response.

The sound quality from this speaker is excellent and is ideal for many audio applications. They are especially suitable in machines and other equipment where space is at a premium.

Visaton are German company that produce great value, high quality speakers. These speakers would be a great way of improving the sound quality of any school or maker project. We like them so much we use them as one of the speaker options for our Bluetooth Stereo Amplifier Kit.

Typical Applications:

  • Electronic musical Instruments.
  • Model construction.
  • Control speakers for electronic devices.

Features:

  • Moisturised cone.
  • Metal basket.

Contents:

  • 1 x 5W 4 Ohm 65mm Full Range Speaker.

Dimensions:

  • Length: 66mm.
  • Width: 66mm.
  • Height: 29mm.

Resources:

Documents & downloads

Technical Information

AttributeValue
Impedance 4 Ohms.
Frequency Response 130Hz - 20kHz.
Mean sound pressure level (W/1m) 86dB.
Length 66mm.
Width 66mm.
Height 29mm.

Related resources

This product doesn't have any resources.

Reviews

There are no reviews yet.

Be the first to review “5W 4 Ohm 65mm Full Range Speaker”

Your email address will not be published. Required fields are marked *

Questions and answers

    Will tgese work with blackstar 10 watt guitar amp
  1. 0 votes
    Q Will tgese work with blackstar 10 watt guitar amp
    Asked by Dilsahib Singh Bhatia on August 12, 2019 12:00 am
    Answered by the admin Good Afternoon,

    You could use them but they would potentially get damaged and would definitely limit the quality and volume of the audio .

    Best Regards

    Cullen
    2. does this come with the kit for it all to work and is there two speakers
  2. 0 votes
    Q does this come with the kit for it all to work and is there two speakers
    Asked by callum on January 26, 2017 12:00 am
    Answered by the admin Hello Callum, The product you have posted the question on is just the speaker itself and not an amplifier kit, we do sell a kit that uses this speaker 2158-3w-class-d-stereo-amplifier, this contains all the parts for the amplifier including two speakers.
    3. Would two of these be compatible with the 3W Class D stereo amplifier circuit?
  3. 0 votes
    Q Would two of these be compatible with the 3W Class D stereo amplifier circuit?
    Asked by Payal on January 21, 2016 12:00 am
    Answered by the admin These are the speakers that are supplied with the 3W class D amp kit, so yes they are fine to use with it.
    4. Would two of these speakers be compatible with this https://www.kitronik.co.uk/c2143-high-power-amp-kit.html as I need to connect the circuit to smaller speakers.Thanks
  4. 0 votes
    Q Would two of these speakers be compatible with this https://www.kitronik.co.uk/c2143-high-power-a...... Read more
    Asked by Payal on December 16, 2015 12:00 am
    Answered by the admin The amplifier chip used in the high powered amp kit is not specified to drive a 4 Ohm load, as such you may have issues with using these speakers. We would suggest using an 8 Ohm speaker as this is what the amplifier chip is designed to drive.
    5. Please can you confirm if these speakers are suitable to operate in a car on dc 12 volt?
  5. 0 votes
    Q Please can you confirm if these speakers are suitable to operate in a car on dc 12 volt?
    Asked by Martin on June 22, 2015 12:00 am
    Answered by the admin It depends on the amplifier in your car.What matters is that the amplifier can support the impedence of the speakers (4 Ohm). If it can't it may damage the amplifier or speaker.
    6. Hello, if I used a 10 watt per channel amplifier with two of these speakers would it damage the speakers or cause distortion.Thanks,Ollie
  6. 0 votes
    Q Hello, if I used a 10 watt per channel amplifier with two of these speakers would it damage the s...... Read more
    Asked by Oliver on October 28, 2014 12:00 am
    Answered by the admin It would very likely damage the speakers, is the amplifier 10W at 8 Ohm or 4 Ohm? We do however sell 20W 8 Ohm rated speakers that would work well.
    7. Are these speakers suitable for connecting to either the standard stereo audio amp or deluxe stereo audio amp? Would be a great way to upgrade from the standard speakers if they are!
  7. 0 votes
    Q Are these speakers suitable for connecting to either the standard stereo audio amp or deluxe ster...... Read more
    Asked by Rob Jeffrey on May 27, 2014 12:00 am
    Answered by the admin Hi Rob,
    They are compatible and it does improve the quality of sound noticeably!
    8. Do these speakers come with connecting wire?
  8. 0 votes
    Q Do these speakers come with connecting wire?
    Asked by Khurram on April 22, 2014 12:00 am
    Answered by the admin The speaker has solder terminal connections, but no cable, reels of cable are available separately, see
    www.kitronik.co.uk/products/wire-leads-and-connectors/wire/figure-8-speaker-cable-2x-7x018mm/
