20W 8 Ohm 100mm Full Range Speaker

Stock code: 3312

Pricing:	Ex VAT	Inc VAT
1+	£6.75 (excl. VAT)	£8.10 (excl. VAT)
10+	£6.35 (excl. VAT)	£7.62 (excl. VAT)

In stock

Decrease product quantity. Increase product quantity.

Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.

Calculate

SKU: 3312 Categories: Audio, Components, Speakers Tag: Speakers Brand: Kitronik Ltd

Physical characteristics:

Length: 100mm.
Width: 100mm.
Height: 49mm.

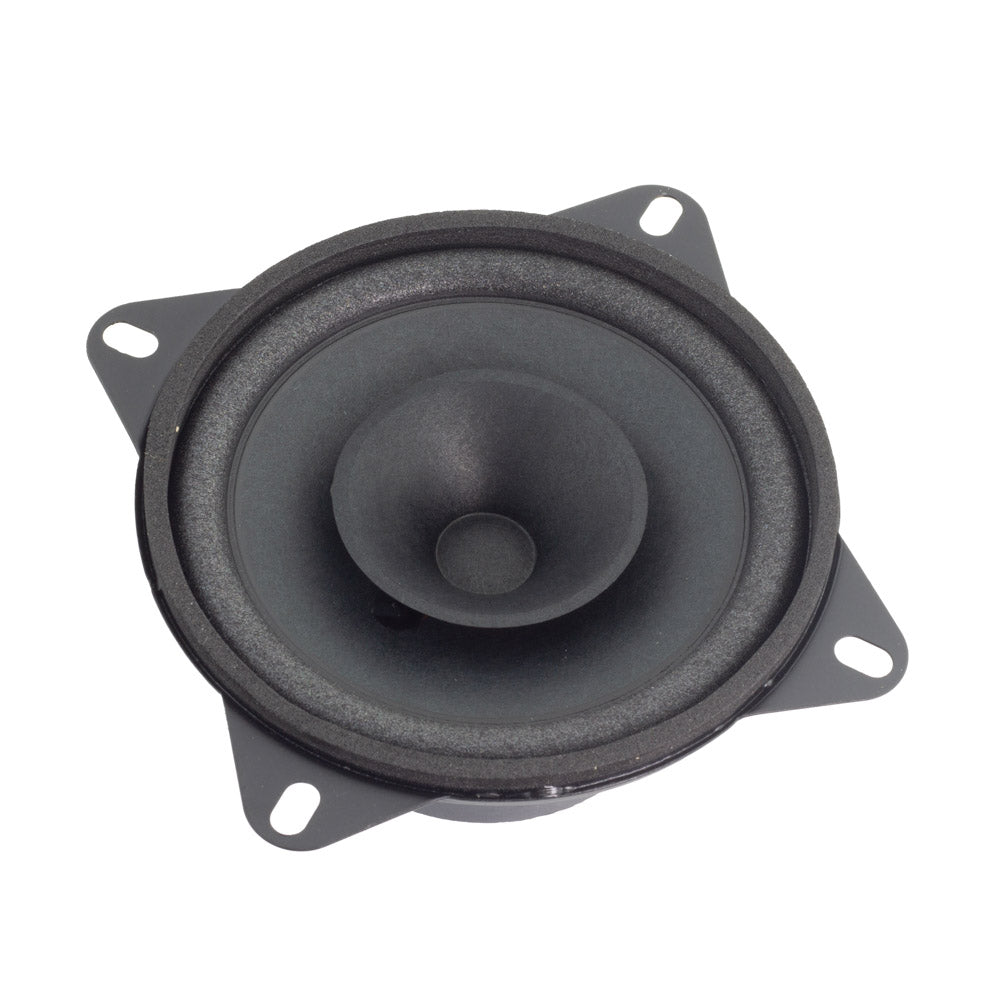

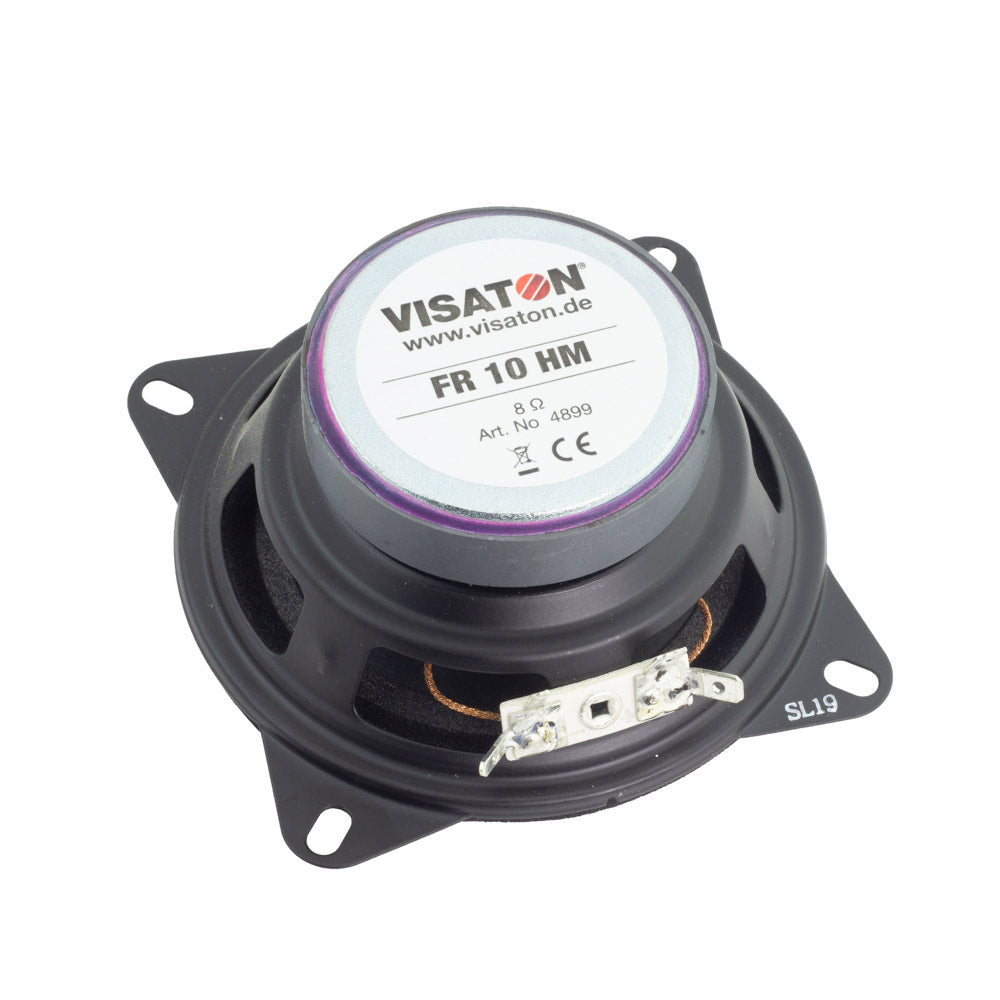

The FR10 HM unit is a high quality 10 cm (4″), 8ohm, full-range speaker with tweeter cone from Visaton. It has a European standard basket. They are designed for simple fitting in cases/vehicles with cut-outs for 10 cm speakers.

The sound quality from this speaker is excellent and is much better than we would expect at such a great value price. This makes them the perfect choice for many audio projects.

Visaton are German company that produce great value, high quality speakers. These speakers would be a great way of improving the sound quality of any school or maker project. We like them so much we use them as one of the speaker options for our Bluetooth Stereo Amplifier Kit.

Features:

Moisturised cone.
Metal basket.

Dimensions:

Length: 100mm.
Width: 100mm.
Height: 49mm.

Resources:

Datasheet.

Documents & downloads

Datasheet.

Technical Information

Attribute	Value
Impedance	8 Ohms.
Frequency Response	96Hz - 22kHz.
Mean sound pressure level (W/1m)	86dB.

Related resources

This product doesn't have any resources.

Reviews

There are no reviews yet.

Be the first to review “20W 8 Ohm 100mm Full Range Speaker”

Questions and answers

Hi, Does this speaker kit 20 w 8 ohm 100mm come with two speakers or one. Also does all the leads and wiring come with it that will make it work.

0 votes

Q Hi, Does this speaker kit 20 w 8 ohm 100mm come with two speakers or one. Also does all the lead...... Read more
Asked by Daniel Perry on July 11, 2018 12:00 am

Answered by the admin Hi Daniel, The product you have posted the question on is just for the speaker itself and isn't an amplifier kit. However the high powered amp kit, https://www.kitronik.co.uk/2143 does include these speakers in the kit and all the other components required.

I need the same model but 6.5 inches.is it available? Thanks

0 votes

Q I need the same model but 6.5 inches.is it available? Thanks
Asked by Mario on June 25, 2018 12:00 am

Answered by the admin Hi Mario, Unfortunately this is the largest sized full range speaker we have. It may be possible to get a similar spec one in a larger size but unfortunately not something we stock.

how loud really are they in Db as I want to play them very loud and am unsure how loud they go

0 votes

Q how loud really are they in Db as I want to play them very loud and am unsure how loud they go
Asked by james on May 21, 2018 12:00 am

Answered by the admin Hi James, these speakers produce around 86 dB, so they are fairly loud. As an idea a food blender is around 90 dB.

if i brought the bluetooth stereo amplifier kit the 100mm 8 ohm one. would i be able to wire up another 100mm 8 ohm speaker to the circuit and it still work.

0 votes

Q if i brought the bluetooth stereo amplifier kit the 100mm 8 ohm one. would i be able to wire up a...... Read more
Asked by luke wotton on March 13, 2017 12:00 am

Answered by the admin Hi Luke, When the 100mm speaker option is brought you would receive two 100mm 8 ohm speakers, one for each channel. It would then become difficult to start connecting multiple speakers to each channel.

Hi, is it possible to use two of these speakers instead of the speakers that come with the deluxe stereo speaker pack?

0 votes

Q Hi, is it possible to use two of these speakers instead of the speakers that come with the deluxe...... Read more
Asked by IA on February 8, 2017 12:00 am

Answered by the admin Hi, Yes it would be possible to use these speaker, but as the Deluxe kit can only output 1W per channel these speakers wouldn’t be used to their full potential. We do have a high power kit, high-power-amp-kit which already use the 20W speakers.

I am thinking of using these for a project, will this kit only work with two speakers or can I use just one of the speakers?

0 votes

Q I am thinking of using these for a project, will this kit only work with two speakers or can I us...... Read more
Asked by Alec on October 13, 2016 12:00 am

Answered by the admin Hi Alec,

You can use one of these speakers on its own.

Would It be better if I use these speakers with tweeters or will they sound good on their own

0 votes

Q Would It be better if I use these speakers with tweeters or will they sound good on their own
Asked by Jagvir Singh Dhaliwal on June 15, 2016 12:00 am

Answered by the admin These speakers are full range, so will cover both high and low frequency signals. As such tweeters would really improve the sound quality. You would be better off using a woofer and tweeter together connected to a cross over as this would give you a better frequency cover.

Will I be able to connect this to a 3.5mm audio jack, for a speaker project?

0 votes

Q Will I be able to connect this to a 3.5mm audio jack, for a speaker project?
Asked by Christian on April 26, 2016 12:00 am

Answered by the admin This depends on what you are doing, if you want the speaker to play music when plugged into an MP3 player or phone you need to use a kit like our High Power Amplifier. Connecting the speaker directly to a 3.5mm jack will not work.

I'd like to know if this speaker can be mounted on my Geloso g504.

0 votes

Q I'd like to know if this speaker can be mounted on my Geloso g504.
Asked by franco on October 9, 2014 12:00 am

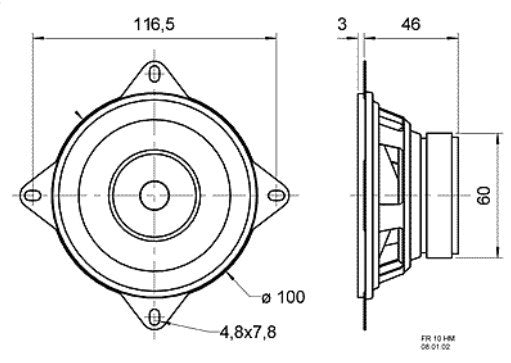

Answered by the admin I couldn't tell you if the speaker will fit a particular product, however I'd added the technical drawing to the additional pictures under the main product image so you can work this out for yourself.

Hi I want to buy these speakers for my build but I also have 2x5w speakers spare, is it possible that I make,a stereo 5w amp and a stereo 20w amp and join the source together ? my worry is that i want to have one potentionometer that will control the volume of both amps is it possible to do that without blowing up 5w speakers or having a terrible distortion?

0 votes

Q Hi I want to buy these speakers for my build but I also have 2x5w speakers spare, is it possible ...... Read more
Asked by Patryk on May 27, 2014 12:00 am

Answered by the admin I wouldn't recommend it. It would be very difficult to use one potentiometer to control the volume of both kits. Also they might not play the music at the same time, one may play a fraction of a second later giving a weird echo effect.

Hi, I was thinking about using these speakers instead of the standard speakers you get with the Deluxe Stereo Amplifier Kit, would this increase the overall sound quality? Thank You.

0 votes

Q Hi, I was thinking about using these speakers instead of the standard speakers you get with the D...... Read more
Asked by Maria SN on April 11, 2014 12:00 am

Answered by the admin Hi Maria, these speakers are too big to be optimal for the stereo amplifier kit. The stereo amplifier kit outputs 1W per channel so 20W speakers won't give a good response. If you are looking to get the most out of the stereo amp kit I would reccomend running it from a 12V supply like this one http://www.kitronik.co.uk/index.php?cID=712 and swapping the speakers for these http://www.kitronik.co.uk/products/components/audio/speakers/5w-6-5cm-full-range-speaker/ although they can output up to 5W they provide a really good volume and quality of sound when ran from the stereo amp kit.

i am making a docking station for my project and i would like to know if i could use two of these

0 votes

Q i am making a docking station for my project and i would like to know if i could use two of these
Asked by James on November 25, 2013 12:00 am

Answered by the admin Hi James, you will have to be more specific. What do you want to use two of them with?

Hi, I was thinking about using these speakers instead of the standard speakers you get with the Deluxe Stereo Amplifier Kit, would this increase the overall sound quality? Thank You.

0 votes

Q Hi, I was thinking about using these speakers instead of the standard speakers you get with the D...... Read more
Asked by Maria SN on August 1, 2013 12:00 am

Answered by the admin Hi Maria, these speakers are too big to be optimal for the stereo amplifier kit. The stereo amplifier kit outputs 1W per channel so 20W speakers won't give a good response. If you are looking to get the most out of the stereo amp kit I would reccomend running it from a 12V supply like this one http://www.kitronik.co.uk/index.php?cID=712 and swapping the speakers for these http://www.kitronik.co.uk/products/components/audio/speakers/5w-6-5cm-full-range-speaker/ although they can output up to 5W they provide a really good volume and quality of sound when ran from the stereo amp kit.

what kind of size would the box for the speaker have to be?

0 votes

Q what kind of size would the box for the speaker have to be?
Asked by Sheil M on March 1, 2013 12:00 am

Answered by the admin The dimensions of the speaker can be found in a drawing under the main image. I'd recommend going a little bigger than the size of the speaker to give yourself some room, a size of 13cm x 13cm x 8cm is a good guideline. If the material you are making the box out of is very thick though you may wish to go a little bigger.

i have just ordered two of these, i hope they are good because honestly, i might have to underpower these speakers, as i think my amp is 10watt p/channel or it might be 20watt p/channel..questions= A: do you know the wattage of the sony lbt-d117 ?? b: will these be alright using that voltage ?? thanks, Ryan C

0 votes

Q i have just ordered two of these, i hope they are good because honestly, i might have to underpow...... Read more
Asked by Ryan C on February 20, 2012 12:00 am

Answered by the admin I've not managed to find a full specification of the system you will be using with these speakers, but have been able to see that it outputs 20W, which is presumably 10W per channel. Running the speakers at 10W per channel will be fine, as you say the speakers won't be running at their full potential, but the stereo will be. As well as checking the power you should also check the impedance of the system. These speakers are 8 ohms and most home audio systems are designed to drive in to 8 ohms. So in this case I suspect that they are likely to be correct, but a quick check on the back of the audio system would indicate the impedance.
It's always worth checking not all equipment is 8 ohms, for instance car stereos use 4 ohm speakers.

0 votes

Q i have just ordered two of these, i hope they are good because honestly, i might have to underpow...... Read more
Asked by Ryan C on February 12, 2012 12:00 am

Answered by the admin I've not managed to find a full specification of the system you will be using with these speakers, but have been able to see that it outputs 20W, which is presumably 10W per channel. Running the speakers at 10W per channel will be fine, as you say the speakers won't be running at their full potential, but the stereo will be. As well as checking the power you should also check the impedance of the system. These speakers are 8 ohms and most home audio systems are designed to drive in to 8 ohms. So in this case I suspect that they are likely to be correct, but a quick check on the back of the audio system would indicate the impedance. It's always worth checking not all equipment is 8 ohms, for instance car stereos use 4 ohm speakers.
