5V PCB Mount Buzzer, with drive

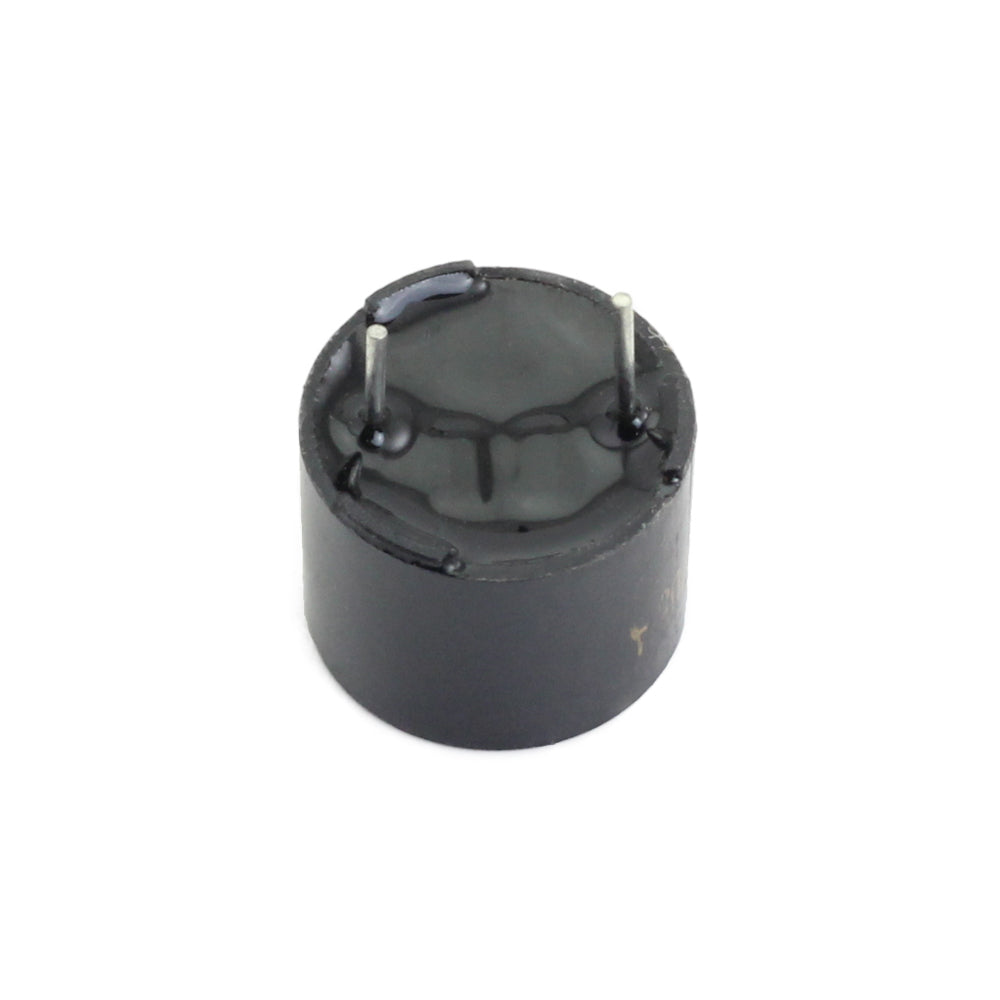

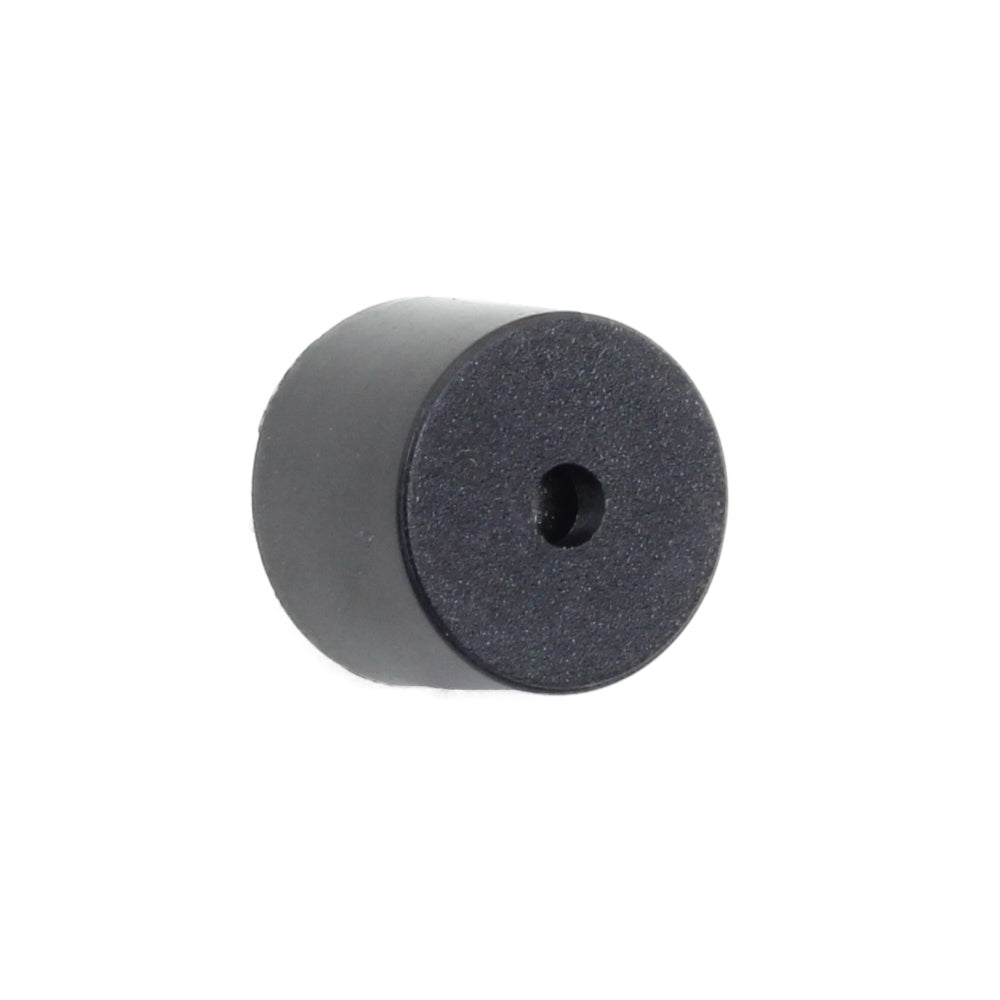

Miniature electromagnetic buzzer with internal oscillator drive circuit for direct PCB mounting. Potted flux-proof base and tear off top label permit board cleaning.

This buzzer is rated for 5V but will operate between 4V and 7V. Its max rated current is 30 mA at 5V DC and it produces an output of 85dB at 10cm.

Its small physical size and 2g weight makes it a desirable option where discreet size and weight are important and it has a lead pitch of 7.6mm. The positive lead is clearly marked on the side of the Noryl casing.

Features:

• It is a very small and lightweight PCB mount buzzer.
• Built in driver.
• Lead pitch of 7.6mm.
• It can be washed.
• It is suitable for wave soldering.

Contents:

• 1 x 5V PCB Mount Buzzer.

Dimensions:

• Diameter: 12mm.
• Height: 9.5mm.
• Lead Pitch: 7.6mm.

Resources:

• Datasheet.
