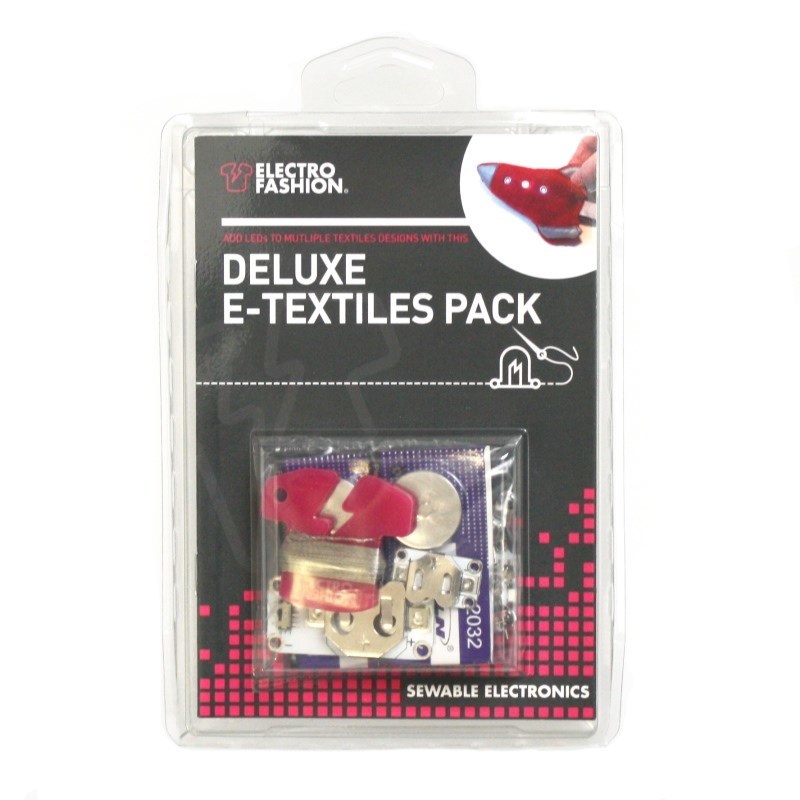

Electro-Fashion Deluxe E-Textiles Pack

This deluxe E-Textiles pack is a great way to get a little more involved with E-Textiles.

We have selected a number of products from our Electro-Fashion range, including three of our ultra-slim LEDs and two separate power boards. There are enough components for you get started immediately to create some eye catching E-Textiles projects, the only limit is your imagination.

Features:

• Everything you need to complete three projects.
• Enough Electro-Fashion components to get started immediately with E-Textiles.
• Full instructions for assembly.
• Great project ideas and tutorials.

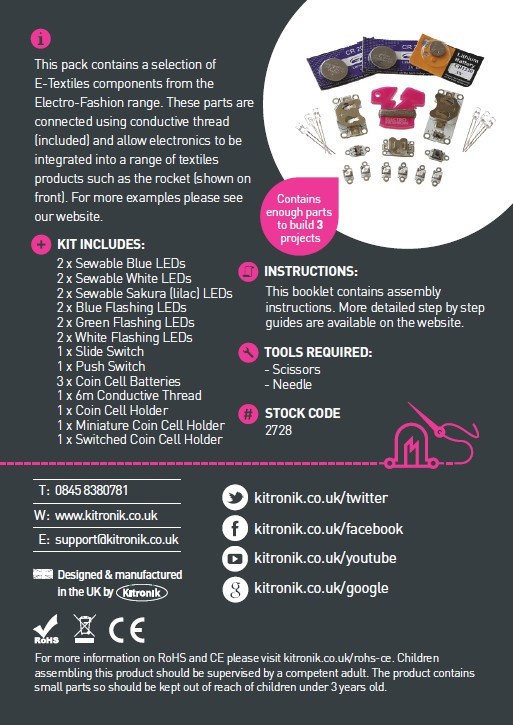

Contents:

• 2 x Sewable Blue LEDs.
• 2 x Sewable White LEDs.
• 2 x Sewable Sakura (lilac) LEDs.
• 2 x Blue Flashing LEDs.
• 2 x Green Flashing LEDs.
• 2 x White Flashing LEDs.
• 1 x Slide Switch.
• 1 x Push Switch.
• 2 x CR2032 Coin Cell Batteries.
• 1 x CR1220 Coin Cell Battery.
• 1 x 6m Conductive Thread.
• 1 x Coin Cell Holder.
• 1 x Miniature Coin Cell Holder.
• 1 x Switched Coin Cell Holder.

Dimensions:

• Ultra Slim Sewable LED Length: 15mm.
• Ultra Slim Sewable LED Width: 6.5mm.
• Ultra Slim Sewable LED Height: 2.7mm.
• Slide Switch Length: 18mm.
• Slide Switch Width: 8.5mm.
• Slide Button Switch Height: 4mm.
• Push Button Switch Length: 18mm.
• Push Button Switch Width: 8.5mm.
• Push Button Switch Height: 3mm.
• CR1220 Battery Height: 2mm.
• CR1220 Battery Diameter: 12mm.
• CR2032 Battery Height: 3.2mm.
• CR2032 Battery Diameter: 20mm.
• Sewable Coin Cell Holder Length: 34mm.
• Sewable Coin Cell Holder Width: 20mm.
• Sewable Coin Cell Holder Height: 4.5mm.
• Sewable Miniature Coin Cell Holder Length: 22mm.
• Sewable Miniature Coin Cell Holder Width: 12.5mm.
• Sewable Miniature Coin Cell Holder Height: 4mm.
• Switched Coin Cell Holder Length: 22mm.
• Switched Coin Cell Holder Width: 12.5mm.
• Switched Coin Cell Holder Height: 4mm.

Requires:

• Scissors.
• Needles.

Resources:

• User Guide.
• E-Textiles Tutorials & Resources.

Caution:

• The coin cell holders in this pack contain Nickel and should not be used in designs where it will be in prolonged contact with the skin.
