Electro-Fashion, Push Button Switch

Stock code: 2708

Pricing:	Ex VAT	Inc VAT
1+	£0.95 (excl. VAT)	£1.14 (excl. VAT)
10+	£0.75 (excl. VAT)	£0.90 (excl. VAT)

In stock

Decrease product quantity. Increase product quantity.

Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.

Calculate

Buy locally from a partner

Country:

SKU: 2708 Categories: E-Textiles & Conductive Thread, e-textiles-switches-sensors Tags: blog:getting-started-with-e-textiles-adding-switches-to-a-circuit, blog:how-to-make-a-rudolph-christmas-decoration, blog:how-to-make-a-sewable-rocket-key-ring-torch, E-Textiles Switches & Sensors Brand: Kitronik Ltd

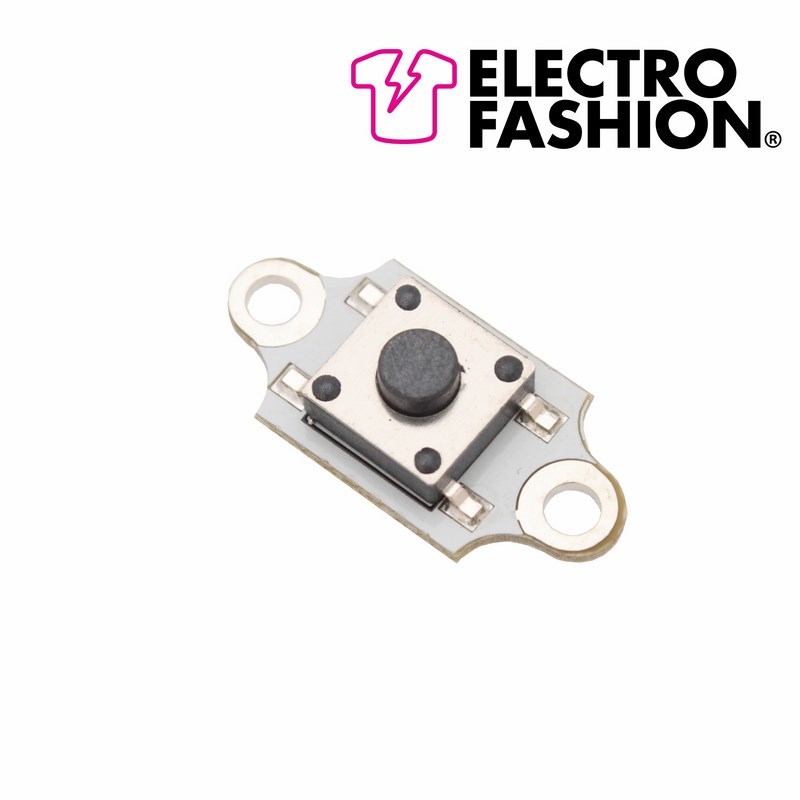

This sewable push switch from Kitronik can be used to activate your e-textiles project whilst it is pressed down (the circuit is broken as soon as pressure on the switch is released).

It has two connection points to which the conductive thread is connected. The PCBs are double sided making the conductive thread connection very reliable (see example picture below).

Features:

Double Sided PCBs for reliable connections.
Momentary push switch.

Dimensions:

Length: 18mm.
Width: 8.5mm.
Height: 3mm.

Resources:

E-Textiles Tutorials & Resources.

Example Circuit:

For illustration only, not actual components provided.

Documents & downloads

E-Textiles Tutorials & Resources.

Example Circuit:

For illustration only, not actual components provided.

Technical Information

Attribute	Value
Length	18mm.
Width	8.5mm.
Height	3mm.
Maximum Switch Rating Voltage DC	12V.
Maximum Switch Rating Current	0.05A (50mA).

Related resources

Reviews

There are no reviews yet.

Be the first to review “Electro-Fashion, Push Button Switch”

Questions and answers

Hello. I was wondering, what is the minimum amount of weight that has to be applied to the button in order to activate the circuit?

0 votes

Q Hello. I was wondering, what is the minimum amount of weight that has to be applied to the button...... Read more
Asked by Ethan on February 12, 2018 12:00 am

Answered by the admin Hello Ethan, It is very difficult to give a sensible estimation of the amount of force required to turn the circuit on. The issue is the surface area of the switch is very small so trying to place an object on this to obtain a weight in nearly impossible. After trying a number of different objects I wasn't able to locate a sensible object to get a result on that is measureable. It would likely deepened a great deal on the item you are using to press the switch or how the force is applied.

Hello, Is this switch of the type click-on click-off or does it have to be pushed continuously to be on? thx, Evelien

0 votes

Q Hello, Is this switch of the type click-on click-off or does it have to be pushed continuously to...... Read more
Asked by Evelien Goemans on October 31, 2013 12:00 am

Answered by the admin Hi, yes this switch is a momentarily closed, normally open switch. It is on when it is held down and turns off when released.

Hello, Is this switch of the type click-on click-off or does it have to be pushed continuously to be on? thx, Evelien

0 votes

Q Hello, Is this switch of the type click-on click-off or does it have to be pushed continuously to...... Read more
Asked by Evelien Goemans on September 16, 2013 12:00 am

Answered by the admin Hi, yes this switch is a momentarily closed, normally open switch. It is on when it is held down and turns off when released.
If you're after a click on, click off we have this one https://kitronik.co.uk/2753-electro-fashion-latching-switch.html
