large white 5mm mega bright led

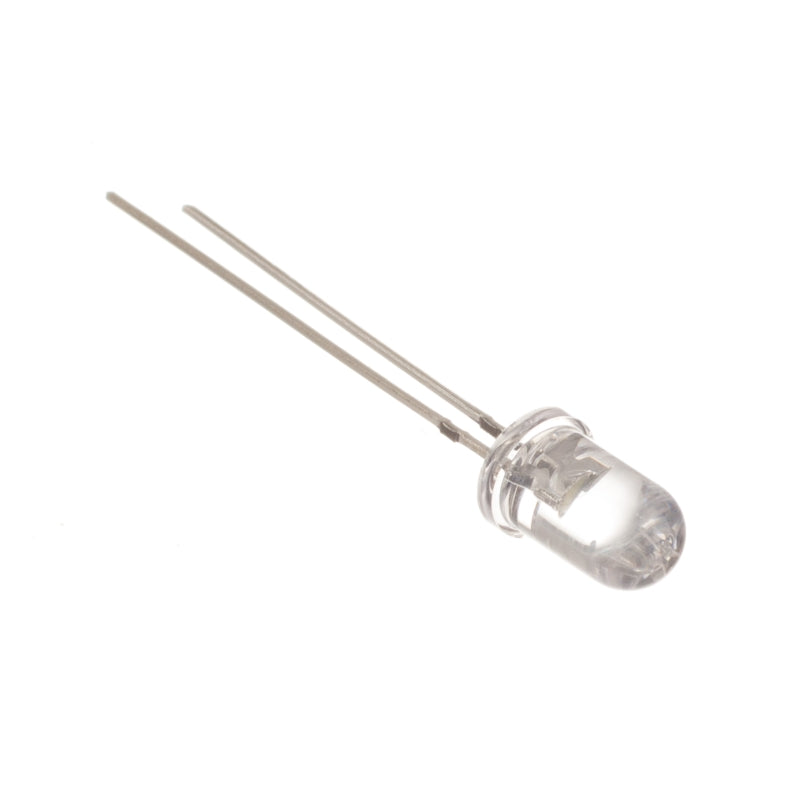

White 5mm Water Clear LED - 30deg - 17500mCd

Stock code: 3550
Pricing:Ex VATInc VAT
1+£0.40
(excl. VAT)
£0.48
(excl. VAT)
10+£0.32
(excl. VAT)
£0.38
(excl. VAT)
100+£0.28
(excl. VAT)
£0.34
(excl. VAT)
500+£0.24
(excl. VAT)
£0.29
(excl. VAT)

In stock

Decrease product quantity. Increase product quantity.
Calculate shipping price

Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.

SKU: 3550 Categories: , , , , , Tags: , , , , , , , Brand:

White 5mm Mega bright Water Clear LED with a viewing angle of 30 degrees. Luminous intensity 17500mCd.

Forward voltage drop: 3.2 V
Viewing angle: 25 – 30 degrees
Max forward current: 30 mA
Luminous intensity: 10000 – 15000 mCd (@20mA)
Lens types: Water clear

Click here to download a datasheet pdf_icon.gif

Technical Information

AttributeValue
Forward voltage drop 3.2V.
Viewing angle 25 - 30 degrees.
Typical forward current 20 mA.
Max forward current 30 mA.
Luminous intensity 17500 mCd (@20mA).
Lens types Water Clear.
V
mA
V
Ohms
Ohms
Enter the operating voltage, click calculate resistor, and the resistor value to work with the LED described on this page will be shown.

Related resources

This product doesn't have any resources.

Reviews

There are no reviews yet.

Be the first to review “White 5mm Water Clear LED – 30deg – 17500mCd”

Your email address will not be published. Required fields are marked *

Questions and answers

    Hi Dave,Depends on what you plug the USB power lead into. Most USB hubs can output 500mA if nothing else is plugged in which equates to about 15 LEDs. However if that USB hub has other things drawing current from it then you won't be able to use that many. You would need to look up the details of your USB hub and check the maximum current draw allowed per device to know for sure.
  1. 0 votes
    Q Hi Dave,Depends on what you plug the USB power lead into. Most USB hubs can output 500mA if nothi...... Read more
    Asked by Dave Marsden on May 7, 2014 12:00 am
    Answered by the admin How many mega bright LED's can you power using your USB power lead?
