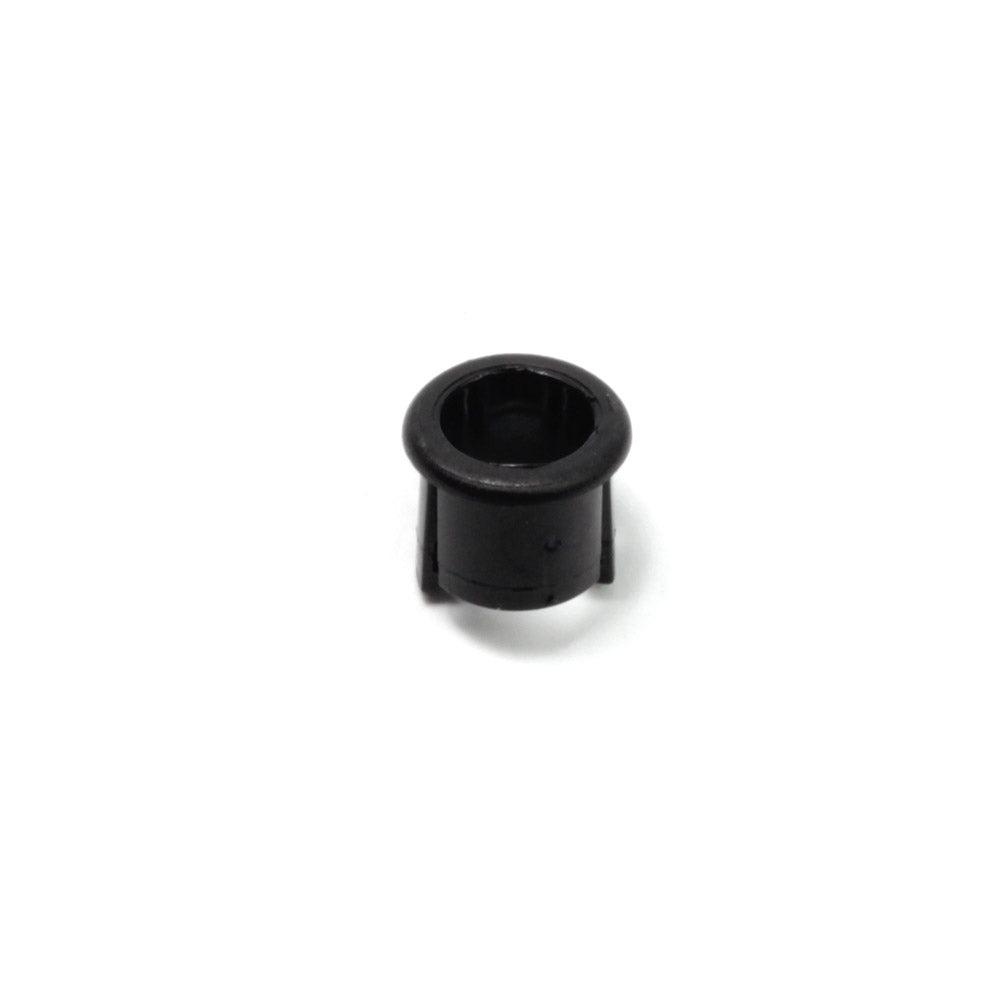

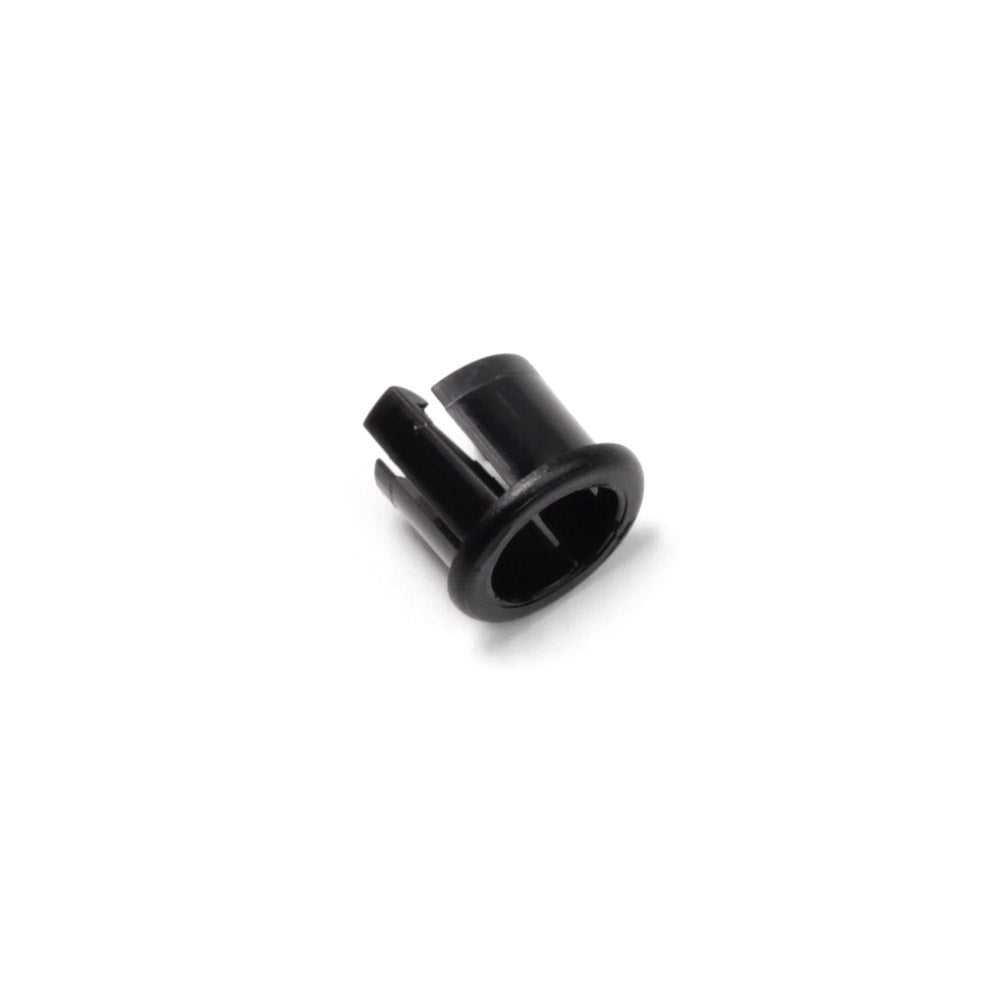

Panel Mount LED Clip 5mm, pack of 50

These Panel Mount LED Clips 5mm, are single-part clips for panel mounting/holding 5mm LEDs. They have a bezel diameter of 8mm and require a mounting hole diameter of 6.5mm. These clips are supplied as a pack of 50.

The housings are made from type 66 Nylon and are suitable for back panel illumination, circuit board indicators, and LED indicators. The housings have a UL rating of 94V-0 and are RoHS compliant. Type 66 nylon is a durable semi-crystalline material with good mechanical properties and is in growing demand across manufacturing and industry.

Features:

• Single-part LED clips for holding/mounting 5mm LEDs.
• With a bezel diameter of 8mm.
• They require a mounting hole diameter of 6.5mm.
• UL rating of 94V-0.
• Made from type 66 Nylon.
• RoHS compliant.
• These clips are supplied as a pack of 50.

Contents:

• 1 x Pack of 50 Panel Mount LED Clips, 5mm.

Dimensions:

• Length: 7mm.
• For LED Diameter: 5mm.
• Bezel Diameter: 8mm.
• Fits Mounting Hole: 6.5mm.

Requires:

• 5mm LEDs – check product described as 5mm.

Resources:

• Datasheet.
