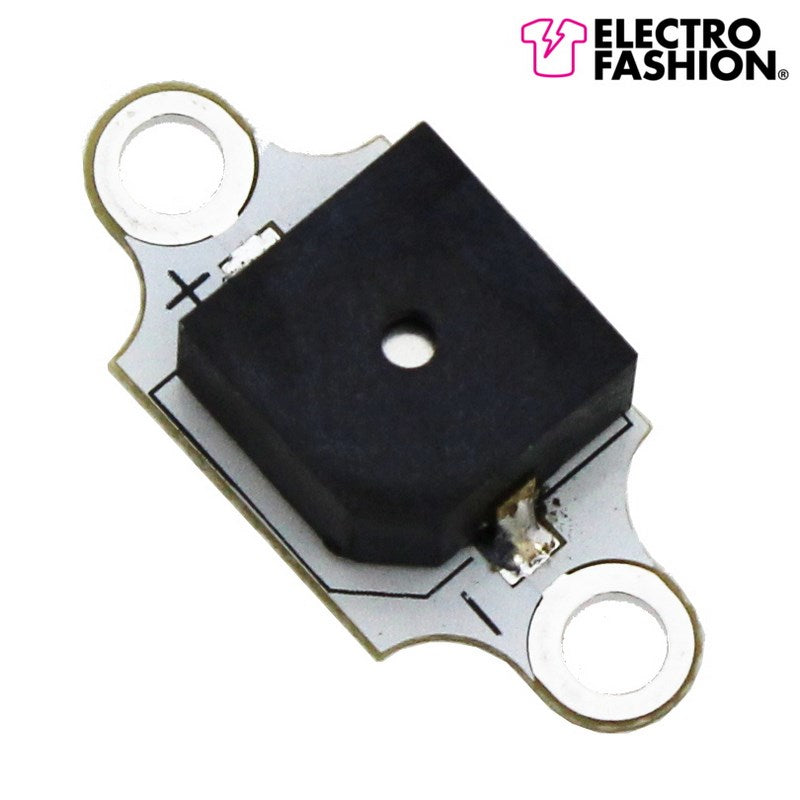

Electro-Fashion, Sewable Buzzer

This Sewable Electro-Fashion Buzzer is ideal for adding sound or an alarm to any e-textiles project. This buzzer has a built-in driver circuit that emits a single tone when the buzzer ic is connected to a 3V power supply. The buzzer and has two connections to which the conductive thread can be connected. These are clearly marked with ‘+’ and ‘-‘ to indicate which is the positive and which is the negative connection.

The PCBs are double sided making the conductive thread connection very reliable.

Note:

This buzzer is compatible with the Electro-Fashion: Igloo, PICAXE wearable module.

Features:

• Runs on a 3V circuit.
• Loud buzzer sound when circuit is active.
• Sewable, double-sided PCB with clearly marked ‘+’ and ‘-‘ terminals.

Contents:

• 1 x Electro-Fashion, Sewable Buzzer.

Dimensions:

• PCB Length: 18mm.
• PCB Width: 8mm.
• Height: 6mm.

Video:

Resources:

• Datasheet.
• E-Textiles Tutorials & Resources.
