Micro USB Lamp Kit - 1W LED

Stock code: 2152

Pricing:	Ex VAT	Inc VAT
1+	£4.99 (excl. VAT)	£5.99 (excl. VAT)
5+	£3.76 (excl. VAT)	£4.51 (excl. VAT)
50+	£3.46 (excl. VAT)	£4.15 (excl. VAT)
200+	£3.29 * (excl. VAT)	£3.94 * (excl. VAT)
300+	£3.11 * (excl. VAT)	£3.74 * (excl. VAT)

Discontinued - This page is for reference for existing customers of this product. It is not possible to buy this item.

SKU: 2152 Category: Uncategorized Brand: Kitronik Ltd

Note; This kit was redesigned and improved and can be found; Kitronik Micro USB Lamp Kit – 1W LED V2.0

This kit allows you to build an economic mains powered lamp that takes power from a standard Micro USB phone charger (available separately).

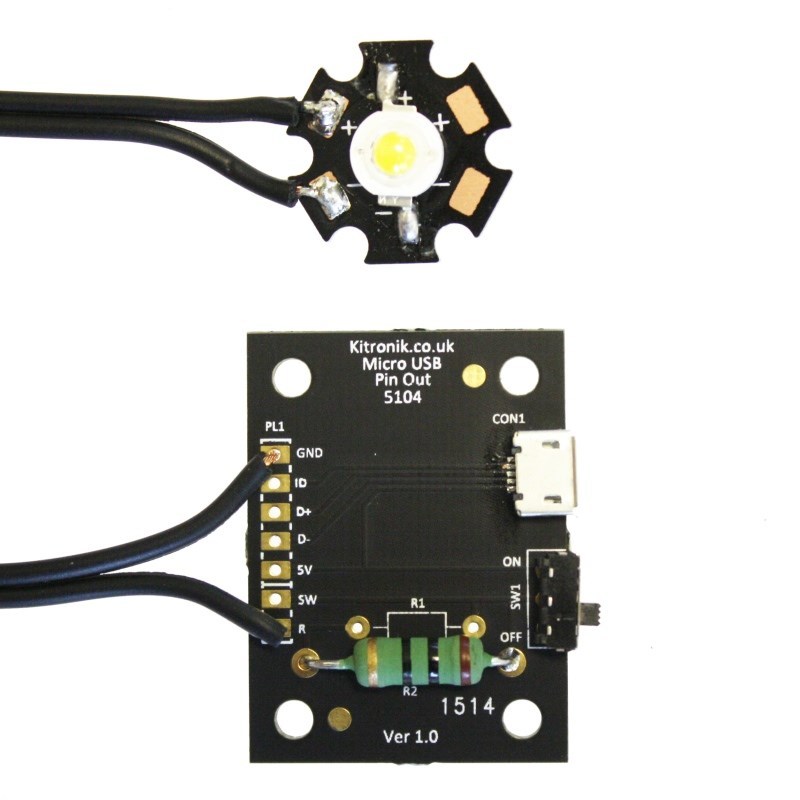

The kit comprises a very bright 1W Power LED which connects (with the cable provided) to a PCB that has a power switch, Micro USB connector and power resistor.

All that is required to assemble the kit is to connect the LED to the desired length of cable and solder the resistor to the board.

Note: Parts only, example case shown not included.

Video:

Here is a video we have put together demonstrating the kit:

Features:

Easy to build lamp kit.
Ultra bright 1W Power LED.

Dimensions:

PCB Length: 38mm.
PCB Width: 28mm.

Requires:

Resources:

Documents & downloads

Technical Information

Attribute	Value
PCB Length	38mm.
PCB Width	28mm.
PCB Component Count	2.
Voltage Nominal	5V.
Voltage Range	3.5V to 6V.
Current Max at Nominal Voltage	0.3A.
