Kitronik Solar Garden Light with Battery

Stock code: 2134
Pricing:Ex VATInc VAT
1+£7.00
(excl. VAT)
£8.40
(excl. VAT)
5+£6.40
(excl. VAT)
£7.68
(excl. VAT)
50+£5.95
(excl. VAT)
£7.14
(excl. VAT)
200+£5.65 *
(excl. VAT)
£6.78 *
(excl. VAT)
300+£5.36 *
(excl. VAT)
£6.43 *
(excl. VAT)
* Price shown includes kit bulk buy discount

This item is currently out of stock, but more are on their way, order now for shipping as soon as they are back in stock.

Decrease product quantity. Increase product quantity.
Calculate shipping price

Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.

Buy locally from a partner

SKU: 2134 Categories: , , , , , Tags: , , , , , , , , , , Brand:

Email me when this item is back in stock.

Kitronik Solar Garden Light with Battery plus wire cutters
£8.90
ex VAT
Kitronik Solar Garden Light with Battery + Economy Wire Cutters
Add both to Cart
Kitronik Solar Garden Light with Battery plus wire cutters and soldering starter kit
£21.15
ex VAT
Kitronik Solar Garden Light with Battery + Economy Wire Cutters + Soldering Iron Starter Kit
Add all to Cart

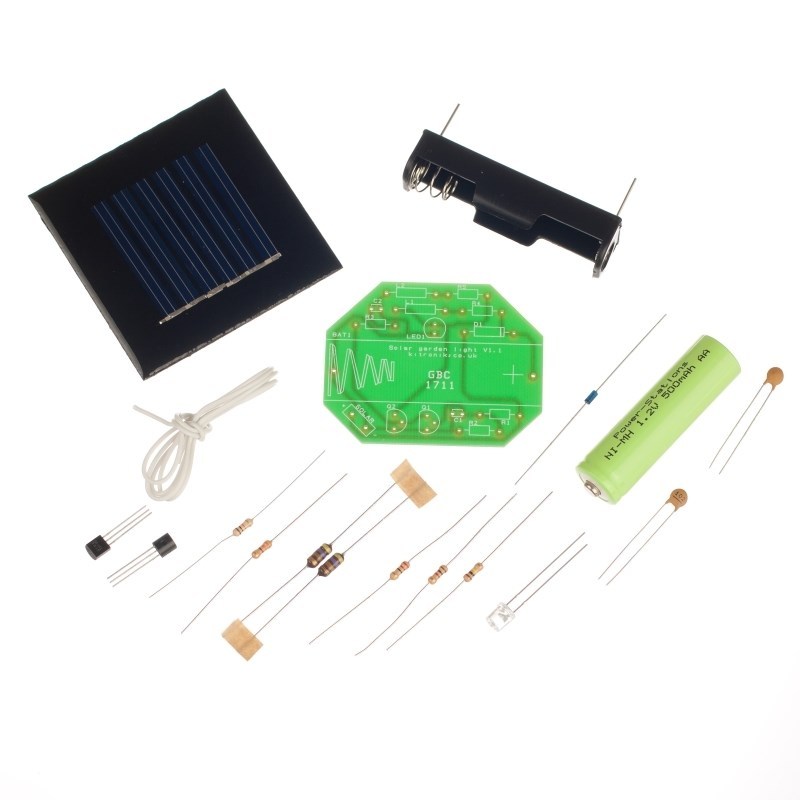

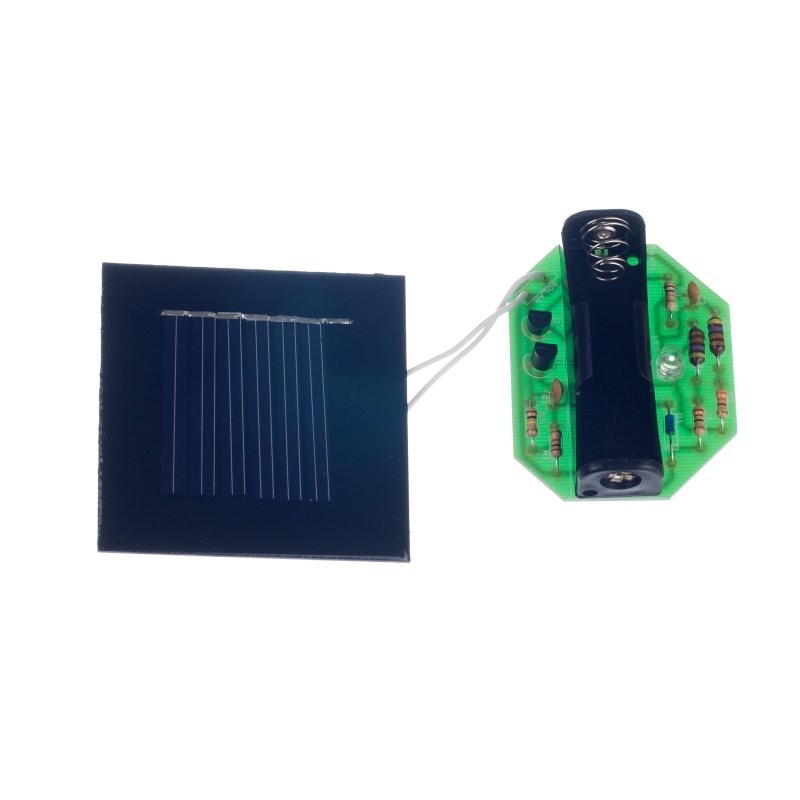

Build your own DIY “Sun Jar” with our Solar Garden Light Kit. It’s an interesting project kit that uses sustainable energy to illuminate a white LED. During the day the solar panel charges an AA battery, then when it goes dark the board automatically switches from charging the battery to illuminating the LED.

The solar panel is resin encapsulated and therefore waterproof. You will need to make a waterproof enclosure for the rest of the parts. Alternatively, the board has been shaped so that it will fit into an old jar.

Features:

  • Waterproof solar panel.
  • Automatically switches on when dark.
  • Make custom enclosures to brighten up the garden at night.

Contents:

Dimensions:

  • Length: 56mm.
  • Width: 44mm.

Video:



Requires:

Resources:

Documents & downloads

Technical Information

AttributeValue
PCB Length 56mm.
PCb Width 44mm.
PCB Component Count 15.
Voltage Nominal 1.2V.
Current Max at Nominal Voltage Charge at 50mA.

Related resources

Soldering School – Kitronik University

The introductory guide to soldering explains what soldering is, contains lessons on soldering equipment, how to solder and how to look after your tools.

1 review for Kitronik Solar Garden Light with Battery

  1. Chaz –

    Good, just be careful of the inductor’s because assemble instruction are online so not included.

Add a review

Your email address will not be published. Required fields are marked *

Questions and answers

    How long does the light take to charge?
  1. 0 votes
    Q How long does the light take to charge?
    Asked by kimy on April 23, 2019 12:00 am
    Answered by the admin Hi Kimy, Thank you for your question unfortunately the answer is that it very much varies.Normally in the UK the solar cell might generate 15mA to 50mA per hour. The battery can be charged with upto 900mAh so between 60 and 18 hours depending on the season and so on. Best Regards Cullen Lewis
    2. Hi Cullenhow do I mount a completed PCB onto say a jam jar lid. this kit does not have the M3 bolt holes, my concern is that if it was siliconed in, the silicone may affect the joints on the back of the PCB. Any suggestions please.thank you Liz
  2. 0 votes
    Q Hi Cullenhow do I mount a completed PCB onto say a jam jar lid. this kit does not have the M3 bol...... Read more
    Asked by elizabeth gmir on March 12, 2019 12:00 am
    Answered by the admin Hi Liz, Thank you for your question, silicone paste would normally be my suggestion you just need to make sure it is similar to the one below. This does not contain Acetic acid whereas some other variants do and this can eat through tracks and joins over time but if it does not have acetic acid in then it should be fine. https://uk.rs-online.com/web/p/silicone-sealants/0555588/ Best Regards Cullen
    3. Could you please tell me if, instead of the LED provided, I could use a colour changing LED? If so, could you also recommend one?ThanksH
  3. 0 votes
    Q Could you please tell me if, instead of the LED provided, I could use a colour changing LED? If s...... Read more
    Asked by Hayden on December 12, 2018 12:00 am
    Answered by the admin HI Hayden, Thank you for your question, unfortunately not as most colour changing LEDs run on 4-6V of power depending on the LED. This kit only supplies 1.5V of power and to change that you would basically have to redesign the kit from scratch. You could however do that with our solar kit below that uses 3 x batteries to generate 4.5V of power. You could buy the kit or the parts separately I have also linked you to one of our most commonly used colour changing LEDs. https://www.kitronik.co.uk/2168-solar-power-starter-kit.html https://www.kitronik.co.uk/catalogsearch/result/?cat=0&q=3527 Best Regards Cullen
    4. if I wanted to put a switch in the circuit, instead of using it as a garden lamp, but instead as a torch, where would I solder it to? the other circuits I saw on the website were a bit too big for my application.
  4. 0 votes
    Q if I wanted to put a switch in the circuit, instead of using it as a garden lamp, but instead as ...... Read more
    Asked by Hrishi Dave on December 7, 2018 12:00 am
    Answered by the admin Hi Hrishi, Thank you for your email, unfortunately that's not possible with this kit as the kit uses the transistors to switch the power supply between the battery and Solar cell based on the amount of sun light the solar cell is receiving (and thus the voltage it produces). I would recommend against trying to modify this kit in this way instead I would recommend purchasing a solar cell, diode, battery pack and LED similar to our 2168 project but with smaller parts so they fit the size you are after. best Regards Cullen
    5. What is a dry joint?
  5. 0 votes
    Q What is a dry joint?
    Asked by Barry Walters on October 11, 2018 12:00 am
    Answered by the admin Hi Barry, Thank you for your question, a dry joint occurs when too little solder is used to attach a component to the printed circuit board. This means a proper electrical connection cannot be established in the circuit and can cause a circuit to not function correctly. For some example pictures of dry joints check the link below. https://www.kitronik.co.uk/blog/how-to-solder-in-ten-easy-steps Best Regards Cullen
    6. I was wondering if you can use more than one 3.1v led in the circuit
  6. 0 votes
    Q I was wondering if you can use more than one 3.1v led in the circuit
    Asked by Jacob Judge on February 6, 2018 12:00 am
    Answered by the admin Hi Jacob, Yes you could technically add additional LEDs but they would need to be wired in parallel to the first LED. This would also decrease the battery life you would get as you would be drawing twice as much current.
    7. Can you use a different light to the led one provided ? If so what light can be used.
  7. 0 votes
    Q Can you use a different light to the led one provided ? If so what light can be used.
    Asked by Jacob Judge on January 25, 2018 12:00 am
    Answered by the admin Hi Jacob, Although the circuit has been designed very specifically as long as you made sure the forward voltage of the replacement LED is 3.1V then it shouldn't be a problem. A large selection of our LEDs have a forward voltage of 3.1.
    8. I understand that the diode is to stop the current from flowing back to the solar cell, can you please explain me what protect the Battery from over charging or it just keep charging until when the light level drop? thanks for the support.
  8. 0 votes
    Q I understand that the diode is to stop the current from flowing back to the solar cell, can you p...... Read more
    Asked by Ekpamaku on November 11, 2013 12:00 am
    Answered by the admin Hi, the solar cell delivers a very low current so overcharging is not really a concern if the battery is discharged through the LED at night. It could theoretically overcharge the battery, but this would take many days of charging without being discharged.
    9. Hi. I have this kit and I would like to collect the power from 5 solar cells and I want to know if I can store the power to use it when I need it with for example switch. Thank you very much.
  9. 0 votes
    Q Hi. I have this kit and I would like to collect the power from 5 solar cells and I want to know i...... Read more
    Asked by ben on June 28, 2012 12:00 am
    Answered by the admin You could parallel up 5 solar cells and use them with something else. However most of the circuit is involved in switching the LEDs on and off. All you need to charge the battery is a diode to stop the current flowing back in to the solar cell at night. I suspect you might be better buy solar cells on their own. You have miss typed you Email address if you Email support I can give you more info.
    10. I want to fit the solar panel into a recess which has a dia of 71mm. Can I simply trim the corners of the panel? Otherwise can I use 4 mini cells wired together which fit ok and give the same voltage and wattage?
  10. 0 votes
    Q I want to fit the solar panel into a recess which has a dia of 71mm. Can I simply trim the corner...... Read more
    Asked by Ian Boulton on May 8, 2012 12:00 am
    Answered by the admin The active section of the cell is the part in the middle, with the silver lines, there is a section around the edge which is not electrically part of the solar cell. So yes, as long as you are careful it would be possible to remove the corners on the solar cell.
    11. Hi Kitronik, I am using this kit with some u/grad trainee teachers in conjunction with a sutainability project brief, do you know if it is possible to simulate the operation of the cct using Circuit Wizard? I have tried this but failed to get the correct operation. It may be a software limitation as the cct is fine and operates as described in the booklet. Best wishes, Alan
  11. 0 votes
    Q Hi Kitronik, I am using this kit with some u/grad trainee teachers in conjunction with a sutainab...... Read more
    Asked by Alan Rowse on February 23, 2012 12:00 am
    Answered by the admin It wouldn't surprise me that you are struggling to get the circuit to simulate. Both circuit wizard and crocodile clips have in my experience been poor at modelling circuits where the voltages are rapidly changing, which is the case in this circuit. I should however point out that when voltages change slowly the software simulates it very well. Since this circuit runs off a 1.5V battery and the LED needs 3.5V the circuit switches the LED on and off many times a second. When the LED is off power is pumped in to the inductor, this is then used to increase the voltage feed in to the LED but for a shorter time. Because all this is happening very quickly and the software models it sampling the voltages at a slower rate it doesn't simulate. Unfortunately I don't have the software to try this, however I suspect if you change some of the component values it might well simulate. I would try changing C2 from a 1nF to a 1uF capacitor. If that doesn't work try changing L1, L2 or R3.
    12. Hello. I am hoping to incorporate the solar garden light kit into concrete garden ornaments that I make, but would like to have two led's ie for the eyes etc. 1. Is this possible 2. What would be the revised cost of the kit with the extra led 3. Could it be adapted to accept two of the colour changing led's and what would be the cost of that kit. Thank you in advance Phil
  12. 0 votes
    Q Hello. I am hoping to incorporate the solar garden light kit into concrete garden ornaments that ...... Read more
    Asked by phil on November 21, 2011 12:00 am
    Answered by the admin The issue would be that the light has been designed so that the solar panel is matched to the LED, so that on all but a winter day the battery is charged by the same amount the LED uses. By adding a 2nd LED the battery would be discharged twice as fast. You could put the two LEDs in parallel off the same current limit resistor in which case it would take the same amount of current, however the LEDs would be dimmer. Additional LEDs are available separately - enter 3546 in the search box (top right). This kit runs off a single AA battery at 1.5V, but the LED has a forward vo
    ltage of 3V so wouldn't work directly off the battery, instead the kit works by driving the LED only for 50% of the time but at twice the voltage. This is done so fast that you can?t see that the LED isn't constantly on, but it would mean that if you connected a colour changing LED to the board it would keep resetting and never move off red.
    13. Hi I made your solar circuit but the light comes on when the sun is shinning on the solar panel not when it goes dark. What component recognises the dark or no light? Your help would be appreciated as I hope to do this project after 1/2 term Thanks Julia
  13. 0 votes
    Q Hi I made your solar circuit but the light comes on when the sun is shinning on the solar panel n...... Read more
    Asked by julia sinclair on May 23, 2011 12:00 am
    Answered by the admin It is the voltage on the solar cell that determines if it is light or dark. In the teaching notes that were supplied with this kit is a fault finding flow chart. Assuming that the LED is always on and there is only one fault with the board then the problem will be fixed by checking: R1 for dry joints. R1 & R2 are in the right place. C1 for a short. The solar cell is in the right way around and for dry joints. Q1 for dry joints or shorts. If you are still struggling to get the board to work feel free to Email support at Kitronik.
