Red Flexible LED strip - 30 way, 12V

These 12V Red Flexible LED strips are available in 0.5m and 5m lengths, with 30 LEDs per 1/2 meter, which gives a total of 300 LEDs in a 5m reel. They are highly versatile and can be used in a wide variety of lighting applications.

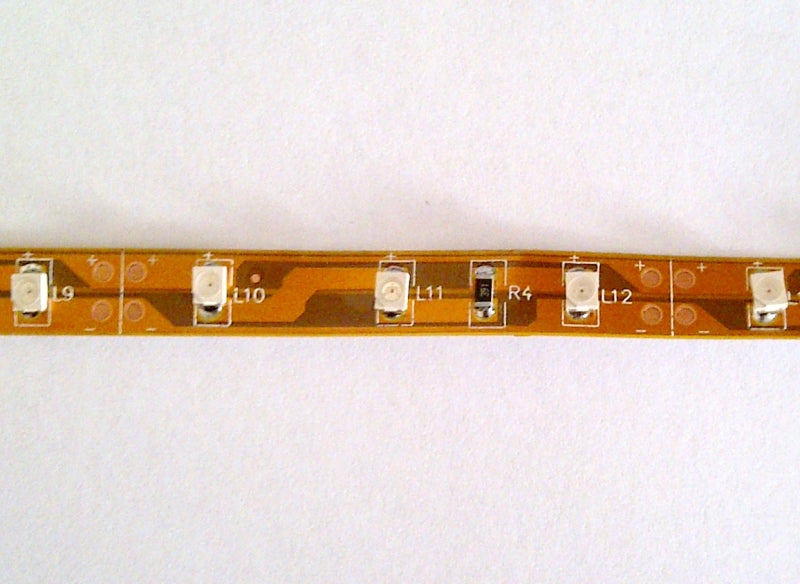

These red flexible LED strips can be cut to size easily as there are cut points every 5cm. Each 5cm section contains 3 LEDs and solder power pads. Sections can easily be joined together with lengths of wire to get the desired amount of coverage in your project.

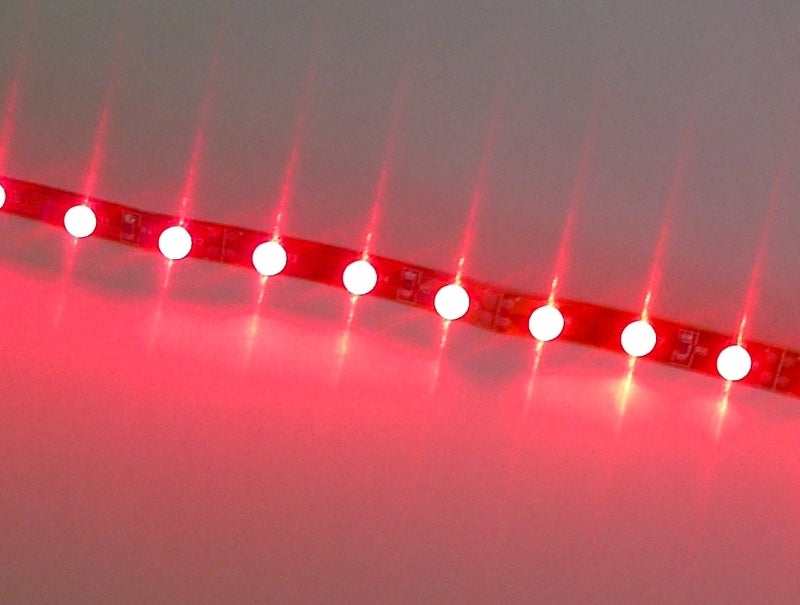

The strips are adhesive-backed and run off a 12DC supply. When lit, they have a generous viewing angle of 120 degrees. The LEDs are based on surface-mounted 3528 LEDs. These reels of LEDs are rated for a supply current = 200mA per 0.5m length.

Note:

• Though these strips are very flexible, care should be taken not to bend them around very sharp corners/angles as this may cause them to become damaged.
• A maximum length of 5m should not be exceeded when connecting these strips in series.

Features:

• Based on a 3528 surface mount LED.
• It runs from a 12V DC supply.
• Supply current = 200mA per 0.5m length.
• Adhesive backed.
• 30 LEDs per 1/2 meter, giving 300 LEDs in a 5m length.
• Strips can be cut into shorter lengths. Cut points every 5cm.
• Three LEDs per 5cm section.
• Multiple sections can be soldered together to make longer lengths.
• Tape width 8mm.
• Thickness 0.2mm + LED height (approx. 1.8mm).
• LED output 250 – 300 (lm).

Contents:

• Red Flexible LED strip – 30-way, 12V

Available in the following lengths:

• 0.5m SKU: 3552 (Contains 30 LEDs)
• 5.0m SKU: 3552-5M (Contains 300 LEDs)

Dimensions:

• Length: 0.5m or 5m.
• Width: 8mm.
• Height: 2mm (nominal).

Resources:

• Datasheet
