Cytron Maker Nano (Arduino compatible)

Love Maker UNO? But it’s too big to fit into your project? Worry not! Introducing Maker Nano, an Arduino board specially crafted for building projects while maintaining all the useful features of Maker UNO.

Wiring up your own circuit is always the most tedious part of learning electronics. It’s very prone to error and sometimes, not reversible. With the help of 12 x LEDs, 1 x programmable push button and 1 x piezo buzzer, you can start coding and have some fun experimenting with Maker Nano right out-of-the-box without the hassle of wiring up any circuit. As you learn and start building projects, the LEDs for each digital I/O pin will also come handy for circuit troubleshooting.

Just slightly bigger than the original Arduino Nano (1mm longer and 3mm wider) and maintaining the same pin arrangement, Maker Nano is compatible with most, if not all, of the daughter boards for Arduino Nano in the market. Not to forget it’s also breadboard friendly. The smaller form factor compared with Arduino UNO makes this a better choice not only for learning purposes but also for building projects and having fun with experiments, especially when you need to fit the board into the tiniest space possible. Unlike its bigger brother Maker UNO, Maker Nano comes with a 5V regulator which means you can power up your circuit from battery or DC adapter, besides the USB port.

Features:

• An Arduino board specially crafted for building projects while maintaining all the useful features of Maker UNO.
• With the help of 12 x LEDs, 1 x programmable push button and 1 x piezo buzzer, you can start coding and have some fun experimenting with Maker Nano right out-of-the-box without the hassle of wiring up any circuit.
• Breadboard friendly.
• Learn Arduino and physical computing on a board that has been specifically designed for education.
• Each GPIO pin has a status LED which can also act as indicators, clearly showing what’s happening on that pin.
• It features a sounder with a dedicated on/off switch, a reset button and a programmable button.
• RoHS compliant.
• Supplied in a grip seal bag.
• Compatible with the original Arduino Nano.

Contents:

• 1 x Maker, Uno Maker Nano.

Dimensions:

• Length: 45.8mm.
• Width: 21.09mm.
• Pin Pitch: 2.54mm.

Resources:

• Maker Nano Datasheet.

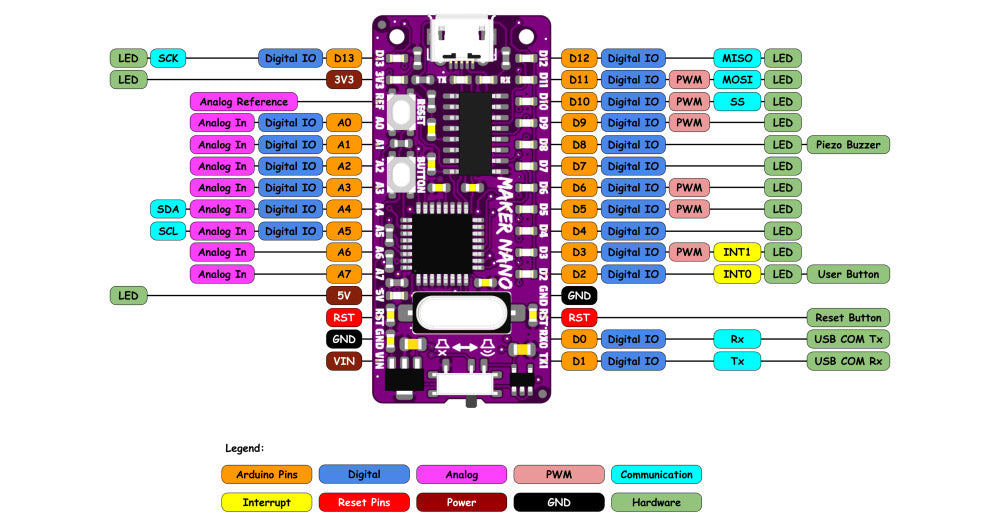

• Maker Nano Pinout Diagram.
• Maker Nano Schematic v1.0.0.
• Arduino IDE.
• CH34X driver: (Please ensure that Maker Nano is connected to the computer’s USB port during driver installation)
• Windows10.
• Windows (V3.5 Mar2019).
• Mac OS (V1.5 Mar2019).
• Linux (V1.5 Mar2019) (Normally is readily installed)
• Download the latest CH34X driver from the manufacturer.
