Cytron Maker UNO X (Arduino compatible)

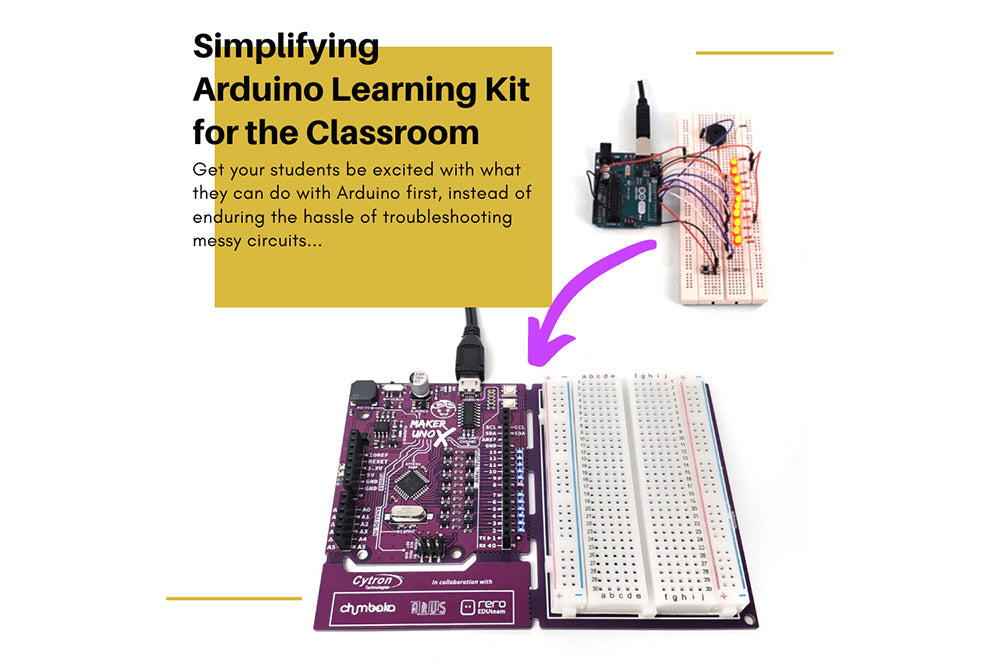

Maker UNO X is a Classroom-friendly Arduino-compatible development board. It is the culmination of years of teaching Arduino & STEM by a variety of developers and educators. Maker UNO X has been specifically designed to be easy to teach in the classroom and beginners friendly for any students.

Get your students to start coding, experimenting ideas and implementing cool stuff first. Get them excited with what they can do with Arduino, instead of enduring the hassle of troubleshooting circuits with messy wires, and in the end, got fed up after their first lesson.

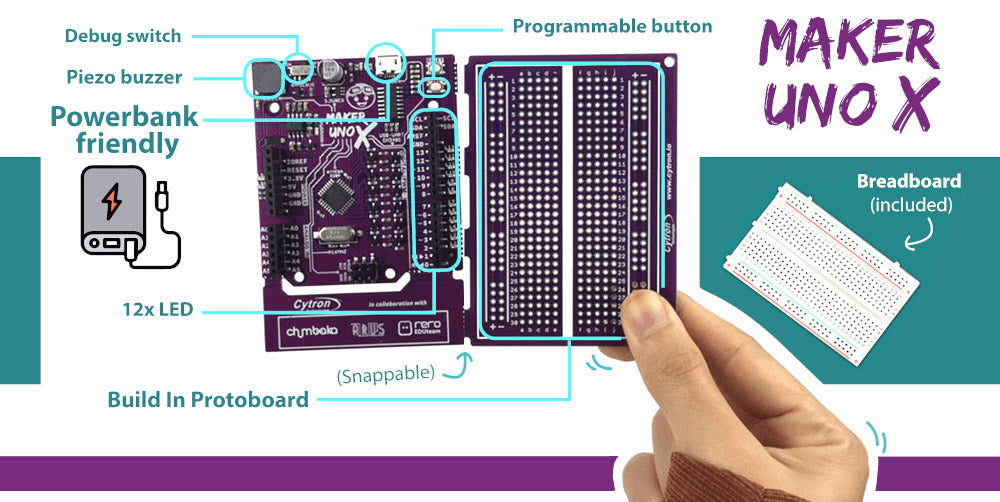

Coding & Electronics made easy with the built-in; LEDs on every digital pin, piezo buzzer, and a programmable push button. It also power-bank friendly, your projects can go wherever you go. It also features a Breadboard and prototyping board (breadboard) which are included onboard.

Features:

• Arduino UNO Compatible.
• Use USB Micro B for power, program loading and USB communication.
• Onboard breadboard prototyping area and a half-size breadboard.
• Ready for classroom or training centre to get started right out of the box.
• Program with Arduino IDE, just choose Arduino UNO as the mainboard.
• Fully compatible with Arduino UNO R3 in terms of sample code and libraries.
• Microcontroller: ATmega328P.
• Operating Voltage: 5V.
• Power-bank-friendly (*Enable continuous supply from most power-banks).
• Digital I/O Pins: 20, PWM Pins: 6, Analog Input Pins: 6 (10-bit resolution), UART: 1, SPI: 1, I2C: 1.
• Flash Memory: 32KB, SRAM: 2KB, EEPROM: 1KB, Clock Speed: 16MHz, USB To UART Chip: CH340.
• 1x Programmable Push Button (Pin D2).
• 1x Piezo Buzzer (Pin D8).
• 12x LED as I/O indicators (Pin D2 to D13).
• 2x LED as UART TX/RX activity indicators (Pin D0 & D1).

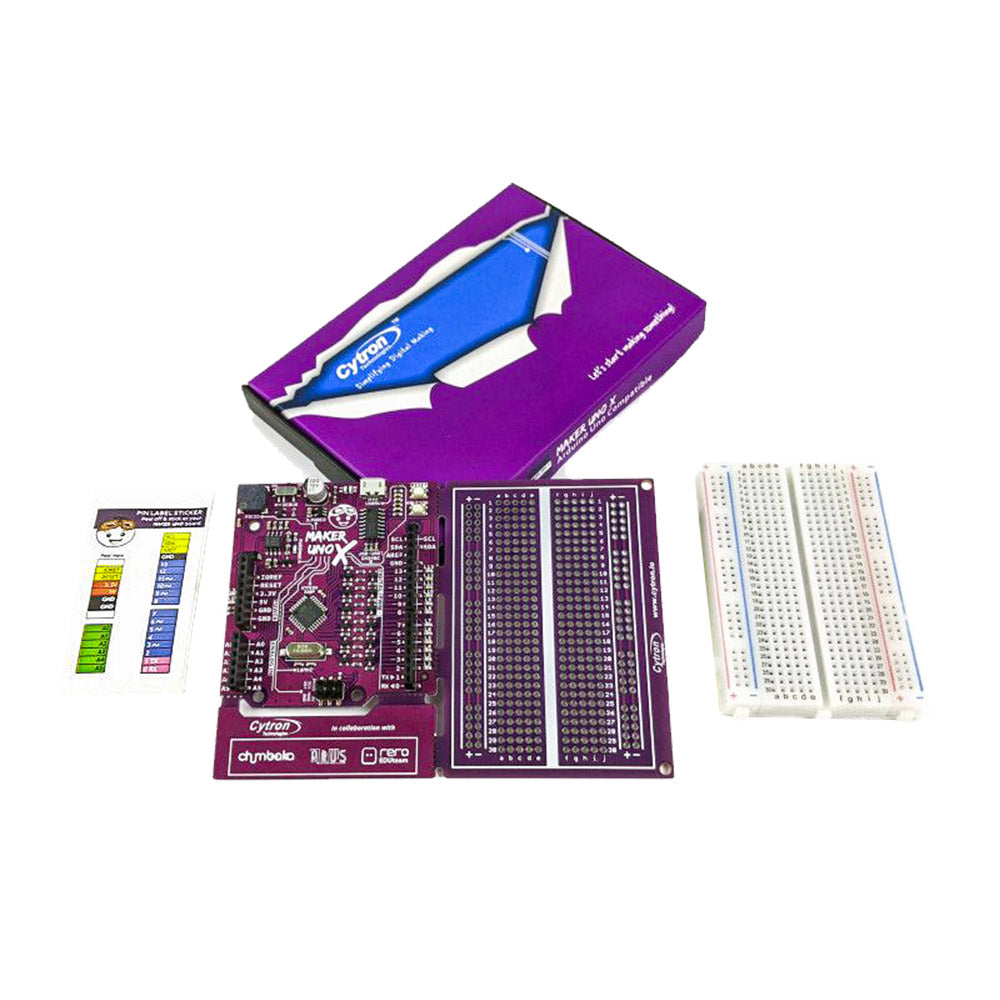

Contents:

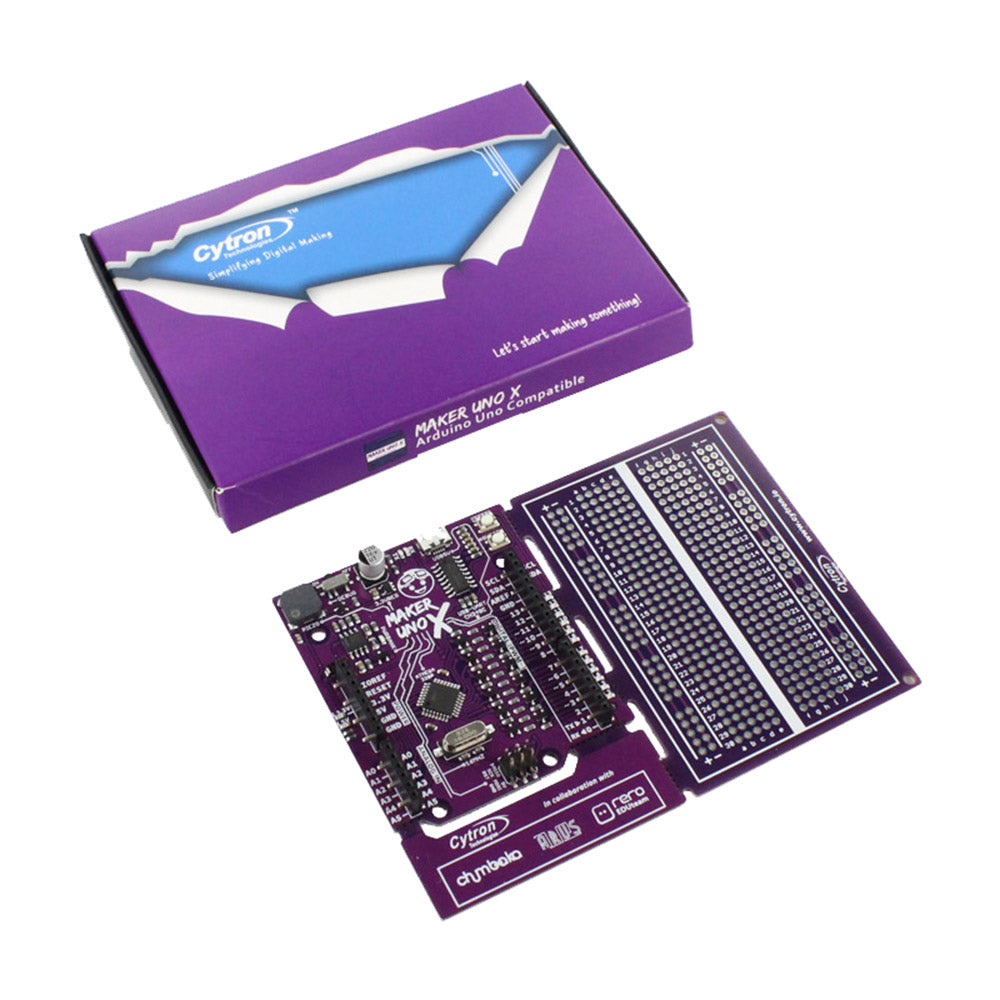

• 1 x Maker UNO X board.
• 1 x Mini breadboard.
• 1 x Maker UNO pin stickers.

Resources:

• Arduino Learning Guide for Beginners with Maker UNO X.
• Arduino IDE Download.
• frizting File.
• CH34X driver (Please ensure that Maker UNO X is connected to a computer USB port during driver installation)
• Windows (V3.5 Mar2019)
• Mac OS (V1.5 Mar2019)
• Linux (V1.5 Mar2019) (Normally is readily installed)
• CH34X Driver – Get the latest driver from the factory
