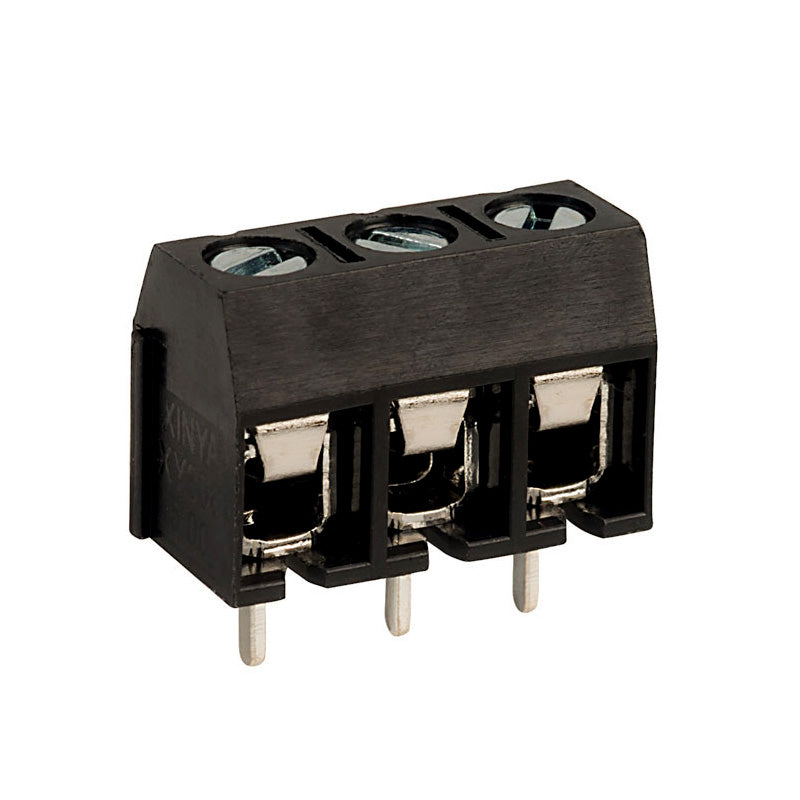

These 3-way low-profile terminal blocks have a 5mm pin spacing making them perfect for both PCB mounting and for use with breadboards. The blocks also feature a captive screw design. They are rated for up to 300V and 16A.
UL, VDE Approved. RoHS Compliant.
Features:
- Low Profile.
- The 5mm pin spacing (pitch) makes them suitable for both PCB and Breadboard mounting.
- Rated for up to 300V and 16A
Contents:
- 10 x 3 way Low profile terminal block.
Dimensions:
- Length: 10mm.
- Width: 7.5mm.
- Height: 10mm.
- Pin Pitch: 5mm.
- Pin Length: 4.2mm.
Requires:
- Soldering Iron.
- Solder.
- Screwdriver.
