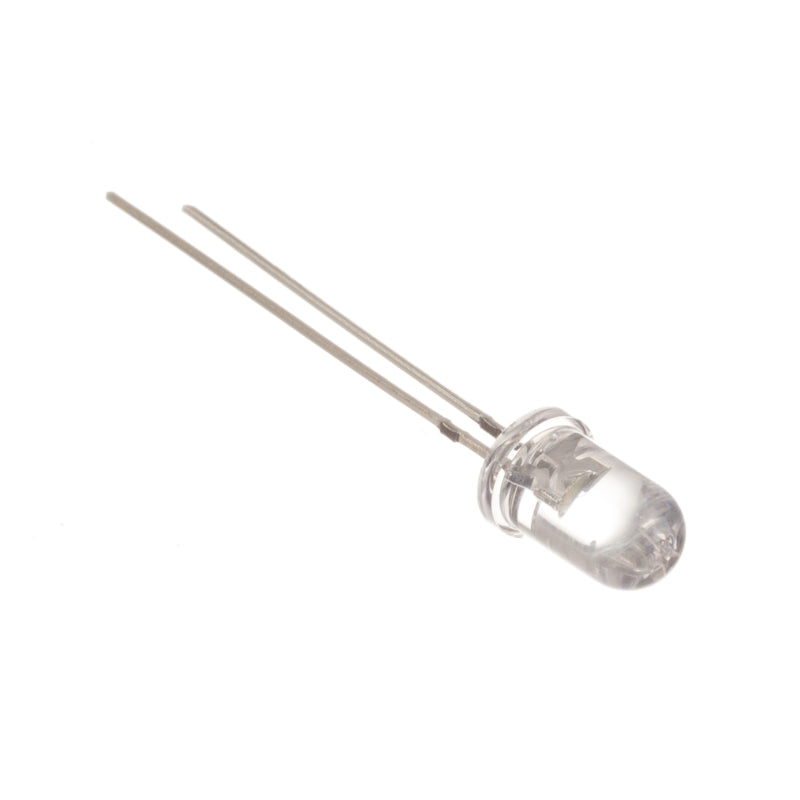

large white 5mm mega bright led

White 5mm Water Clear LED - 15deg - 17500mCd

Stock code: 3549
Pricing:Ex VATInc VAT
1+£0.40
(excl. VAT)
£0.48
(excl. VAT)
10+£0.32
(excl. VAT)
£0.38
(excl. VAT)
100+£0.28
(excl. VAT)
£0.34
(excl. VAT)
500+£0.24
(excl. VAT)
£0.29
(excl. VAT)

In stock

Decrease product quantity. Increase product quantity.
Calculate shipping price

Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.

SKU: 3549 Categories: , , , , , Tags: , , , , , , , Brand:

White 5mm Mega bright Water Clear LED with a viewing angle of 15 degrees. Luminous intensity 17500mCd.

Forward voltage drop: 3.2 V
Viewing angle: 15 degrees
Max forward current: 30 mA
Luminous intensity: 15000 – 20000 mCd (@20mA)
Lens types: Water clear

Click here to download a datasheet pdf_icon.gif

Technical Information

AttributeValue
Forward voltage drop 3.2V.
Viewing angle 15 degrees.
Typical forward current 20 mA.
Max forward current 30 mA.
Luminous intensity 17500 mCd (@20mA).
Lens types Water Clear.
V
mA
V
Ohms
Ohms
Enter the operating voltage, click calculate resistor, and the resistor value to work with the LED described on this page will be shown.

Related resources

This product doesn't have any resources.

Reviews

There are no reviews yet.

Be the first to review “White 5mm Water Clear LED – 15deg – 17500mCd”

Your email address will not be published. Required fields are marked *

Questions and answers

    Can I use this LED without a current limiting resistor? -ie- connected direct to a 3V coin cell (CR1220)? We want to make a simple torch WITHOUT a resistor, so if this one is not suitable (as it's 3.2V) then please advise which of your white 5mm superbright LEDs would work directly from a 3.0V cell. Thank you!
  1. 0 votes
    Q Can I use this LED without a current limiting resistor? -ie- connected direct to a 3V coin cell (...... Read more
    Asked by H Swinyard on June 10, 2014 12:00 am
    Answered by the admin This one is suitable. Well, it will work attached directly to a 3V coincell. It's usually a good idea to use a current limit resistor but it isn't vital for what you are doing.
    2. What coin battery would be best to use for two of the mega bright LEDs in a circuit?
  2. 0 votes
    Q What coin battery would be best to use for two of the mega bright LEDs in a circuit?
    Asked by Hannah on June 11, 2013 12:00 am
    Answered by the admin Hi Hannah, we do a CR1220, CR2012 and CR2032. The first two numbers are the diameter so 12mm or 20mm and the last two numbers are the height of the battery in tenths of millimeters so 2mm or 1.2mm or 3.2mm. All the batteries have the same voltage 3V so any would work but the bigger batteries hold more charge. CR2032 would light them for the longest. You should wire the LEDs in parallel.
