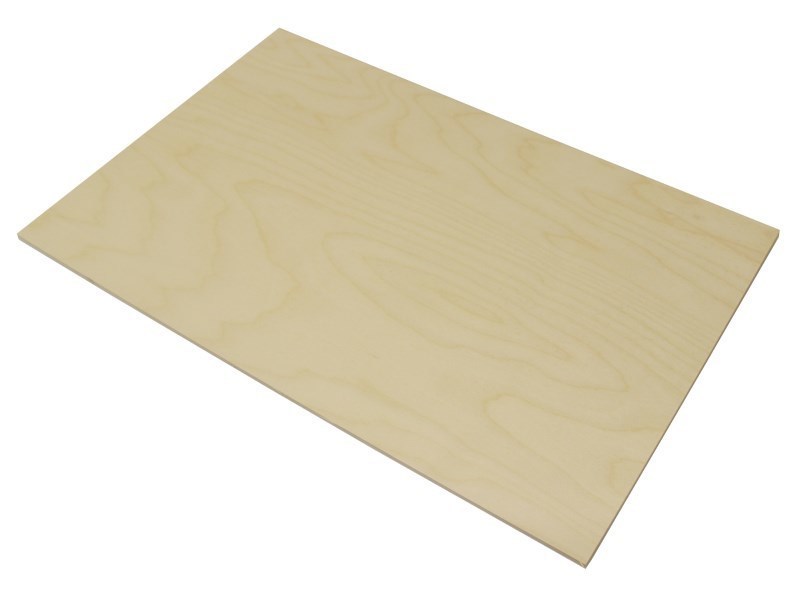

This is a high quality 3mm BR Grade, Birch Laser Plywood sheet produced in Finland which is suitable for a wide range of applications and is suitable for laser cutting.

This is BR ‘veneer’ grade Birch Plywood. This is similar to B grade material, with knots that would typically not exceed 7mm to 8mm in diameter. It shows the natural look of the wood and will show natural colour variations. These plywoods are used in specialist applications and tend to have a slightly higher quality feel. The surface of the material is typically of a smoother finish than that of most plywoods.

This plywood uses an EN314-2 Class 1 glue which is suitable for interior (dry) conditions. Interior glue is generally considered the preferred option for materials that are to be laser cut. We use interior glues because exterior glues can cause a more obvious ‘burnt’ look on and around the area that is cut.
Features:

  • High quality material with a smoother surface than typical plywood.
  • Interior grade glue.
  • 6 ply plywood.



Contents:

  • 1 x 3mm BR Grade Birch Laser Plywood, 600mm x 400mm sheet.



Dimensions:

  • Length: 600mm.
  • Width: 400mm.
  • Height: 3mm.



Tolerances:

The manufacturing tolerance for the thickness of plywood sheets are the stated thickness +/-10%. This means a 3mm plywood sheet could be between 2.7mm and 3.3mm in thickness.



Resources:



Caution:

  • As wood is a natural product there is often a bow or crook to plywood, and in some cases a twist. We have measured curvature as much as a 30mm rise between the flat center of the plywood and the corner, therefore if using on a laser cutter these sheets should be strapped/taped to the laser bed before cutting.
  • Some sheets of this product may have a material origin ink stamp. As sheets are stored stacked there can be some transfer of the ink from one sheet to another and as a result the ink mark may appear on both sides. If required the mark can be quickly removed with fine sandpaper.

Documents & downloads



Caution:

  • As wood is a natural product there is often a bow or crook to plywood, and in some cases a twist. We have measured curvature as much as a 30mm rise between the flat center of the plywood and the corner, therefore if using on a laser cutter these sheets should be strapped/taped to the laser bed before cutting.
  • Some sheets of this product may have a material origin ink stamp. As sheets are stored stacked there can be some transfer of the ink from one sheet to another and as a result the ink mark may appear on both sides. If required the mark can be quickly removed with fine sandpaper.

Related resources

Reviews

There are no reviews yet.

Be the first to review “3mm BR Grade Birch Laser Plywood, 600mm x 400mm sheet”

Your email address will not be published. Required fields are marked *

Questions and answers

    Do you offer any advice about power required for laser cutting? I tried cutting some of your 3mm B/BB grade Birch Plywood and had no troubles. With the 3mm BR Grade I had trouble with the pieces not being cut through. I'm very new to laser cutting, a quick look online suggests different machines have different settings so I imagine it's no really possible to provide general advice but thought it worth a quick question. Thanks, Steve.
  1. 0 votes
    Q Do you offer any advice about power required for laser cutting? I tried cutting some of your 3mm...... Read more
    Asked by Steve on December 16, 2016 12:00 am
    Answered by the admin Hi Steve, Unfortunately you are correct, each machine will cut differently and as the machine is used and the tube becomes used it will become more difficult to cut. Also the material plays a large part as well, as from batch to batch and even sometimes within batches the density of the wood can change. As such a few test cuts should provide you with an ideal cutting setting for the wood. You may also want to look at using poplar laser ply as this is more consistent and less dense than birch so will cut easier and quicker, https://www.kitronik.co.uk/materials/laser-plywood/poplar-laser-plywood.html.
