| Pricing: | Ex VAT | Inc VAT |
| 1+ | £0.65 (excl. VAT) | £0.78 (excl. VAT) |
| 5+ | £0.60 (excl. VAT) | £0.72 (excl. VAT) |
| 100+ | £0.55 (excl. VAT) | £0.66 (excl. VAT) |
In stock

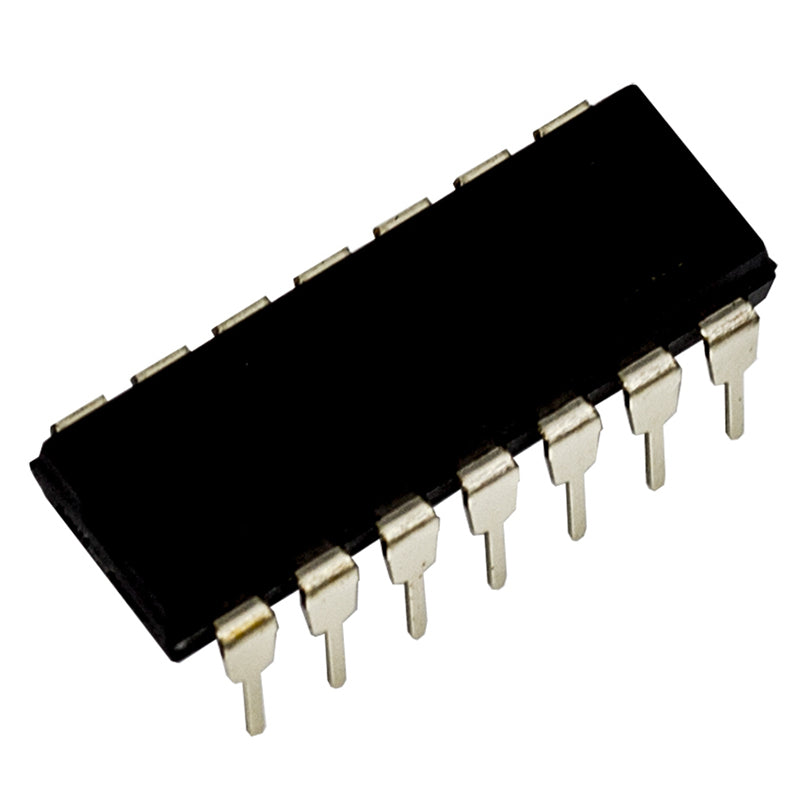

A Quad 2 Input OR Gate using CMOS technology and supplied in a 14 pin DIL package. All inputs and outputs are buffered.
The OR gate takes in two inputs. When either Input A OR Input B are high the output will be active.
 |
Input A | Input B | Output Z |
| 0 | 0 | 0 | |
| 0 | 1 | 1 | |
| 1 | 0 | 1 | |
| 1 | 1 | 1 |
| Attribute | Value |
|---|---|
| Operating Voltage | 3V to 15V. |
| Voltage on any pin | -0.5V to Operating Voltage +0.5V. |
| Maximum Low Input Voltage | 1.5V @ 5V operating Voltage. |
| Maximum Low Input Voltage | 2.7V @ 9V operating Voltage. |
| Maximum Low Input Voltage | 3.6V @12V operating Voltage. |
| Ma |
