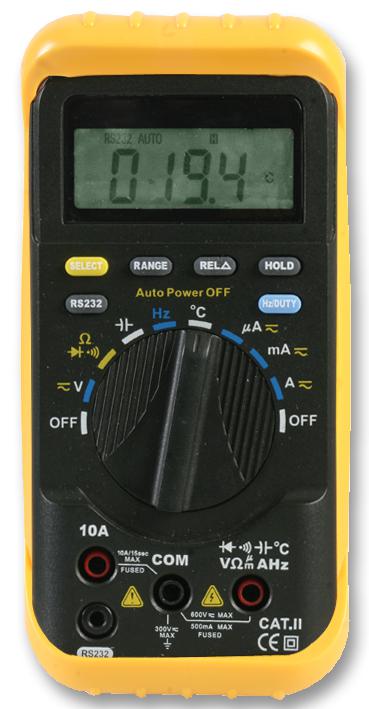

Digital Auto Ranging Multimeter

Note: Although we no longer stock this product, we do stock this great value alternative; DM830D Multimeter

This Digital Auto Ranging Multimeter is an excellent measuring and troubleshooting tool for any of your projects. As it is auto-ranging, you don’t need to worry about setting it to the wrong range. The large clear 3 3/4 digits on the 4000 count LCD display makes measurements easy to read whilst testing equipment.

Other features include an auto-polarity measurement for direct current readings and an auto power OFF so you don’t have to worry about using up battery power when it is not being used. This makes it ideal in classrooms where there can be many distractions.

This digital multimeter features advanced RS232 data logging and temperature measurement. Ideal for both professional and home use. It is supplied with test leads, RS232 lead, K-Type thermocouple probe, 2 x 1.5V AA batteries and a user guide.

Features:

• 3 3/4 digit, 4000 count LCD display.
• Measures AC/DC voltage & current, resistance, capacitance, temperature, frequency & duty cycle measurement.
• Auto range control.
• Auto power OFF.
• Easy grip upholster with test lead grips.

Electrical characteristics:

• Capacitance Measuring Range: 40nF, 400nF, 4µF, 40µF, 100µF.
• Current Measuring Range AC: 400µA, 4000µA, 40mA, 400mA, 4A, 10A.
• Current Measuring Range DC: 400µA, 4000µA, 40mA, 400mA, 4A, 10A.
• Temperature Measuring Range: 0°C to +750°C.
• Voltage Measuring Range AC: 400mV, 4V, 40V, 400V, 600V.
• Voltage Measuring Range DC: 400mV, 4V, 40V, 400V, 600V.

Contents:

• 1 x Digital Auto Ranging Multimeter.
• 1 x RS232 lead (3mm headphone socket – VGA socket).
• 2 x Covered probes (1 red, 1 black).
• 1 x K-Type thermocouple probe (yellow – black).
• 2 x AA batteries (supplied in multimeter).
• 1 x Multimeter user guide.
• 1 x CD with multimeter software (Microsoft Windows only).

Dimensions:

• Length: 145mm.
• Width: 73mm.
• Height: 40mm.

Video:

Resources:

• How to use a Multimeter.
