large miniature 3v vibrating motor
additional 3v vibrating motor dimensions
additional miniature 3v vibrating motor

Miniature 3V Vibrating Motor

Stock code: 2541
Pricing:Ex VATInc VAT
1+£1.55
(excl. VAT)
£1.86
(excl. VAT)
10+£1.25
(excl. VAT)
£1.50
(excl. VAT)
100+£1.15
(excl. VAT)
£1.38
(excl. VAT)
250+£1.05
(excl. VAT)
£1.26
(excl. VAT)

In stock

Decrease product quantity. Increase product quantity.
Calculate shipping price

Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.

SKU: 2541 Categories: , Tag: Brand:

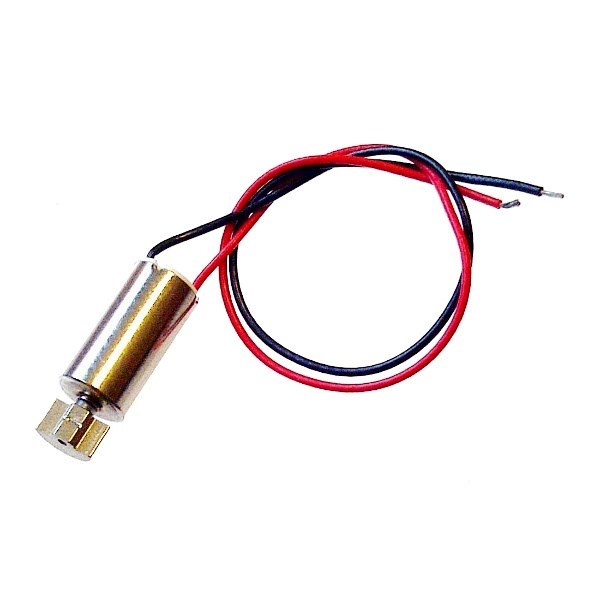

Miniature vibration motor measuring only 12mm long x 6mm diameter. Coreless motor design, rated at 3V nominal.

These motors are often used for silent alert functions in mobile phones and are also used in applications within tools, robotics, control sticks and various alert functions in hand held equipment.

Pre-wired with red & black leads 90mm.

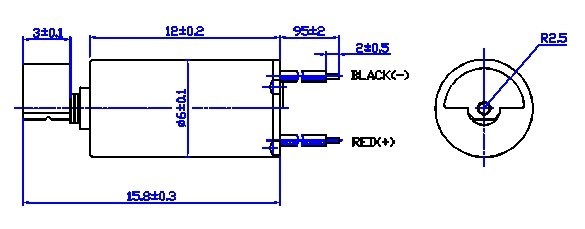

Dimensions: L: 12mm. Diameter: 6mm
Rated voltage: 3.0VDC
Operating range:  1.7-3.6VDC
Rated speed:  14000 RPM (±2000 RPM)
Vibration amplitude: 1.5
Starting voltage: 1.7V max
Rated current:  75mA
Stall current: 140mA max
Weight:  1.85g



Download datasheet pdf_icon.gif

Related resources

This product doesn't have any resources.

Reviews

There are no reviews yet.

Be the first to review “Miniature 3V Vibrating Motor”

Your email address will not be published. Required fields are marked *

Questions and answers

    Can you control how many rotations this does?
  1. 0 votes
    Q Can you control how many rotations this does?
    Asked by Miss Walsh on November 8, 2018 12:00 am
    Answered by the admin Hi Miss Walsh, Thank you for your question, you can theoretically but this would mainly need to be done by using something like a variable resistor to control how much power reaches the motor. Best Regards Cullen
