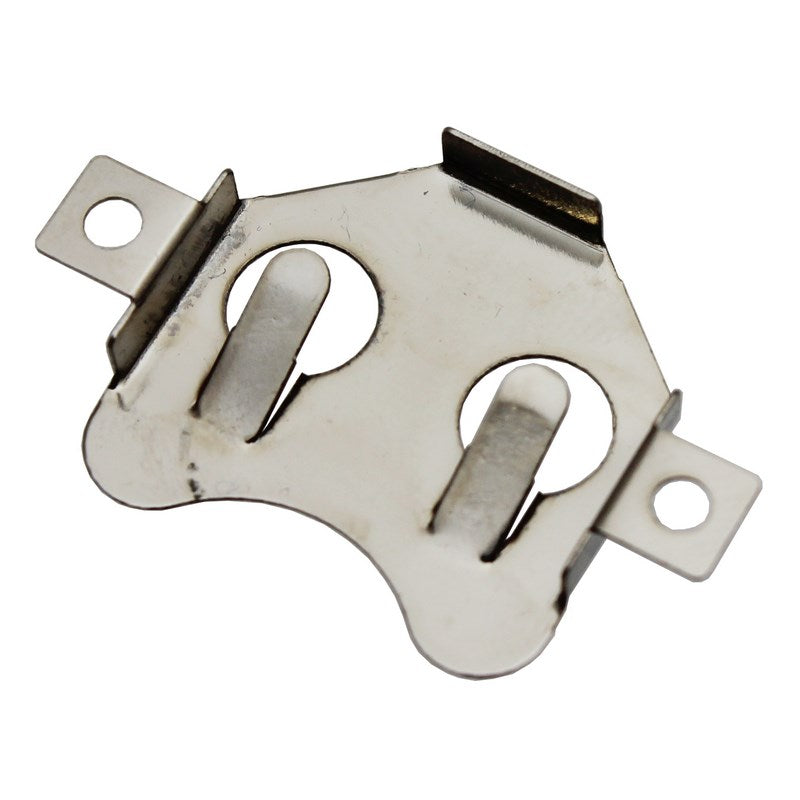

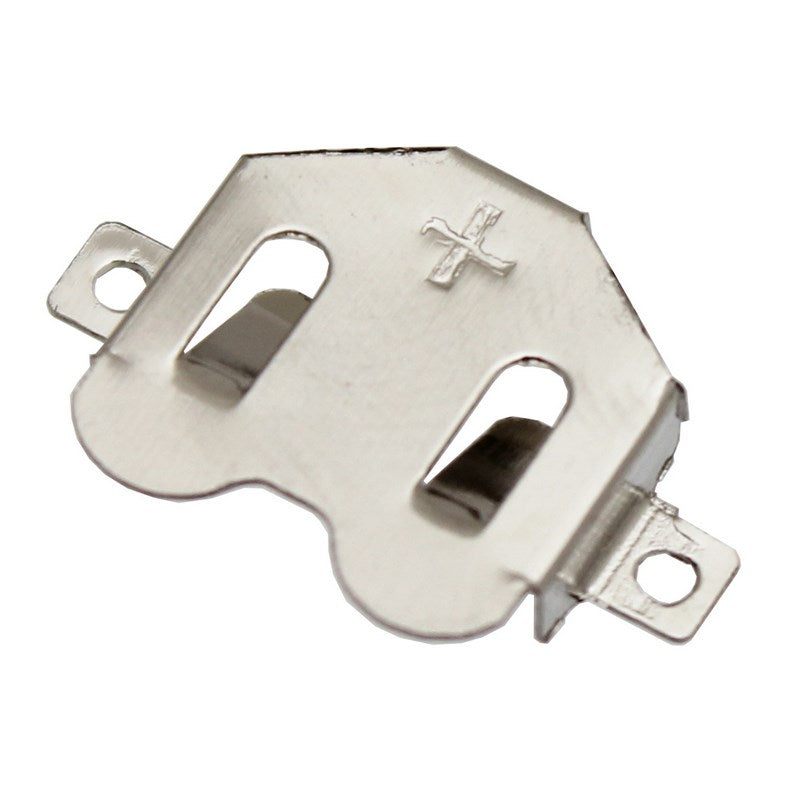

This economical and reliable 20mm Surface Mount Coin Cell Retainer clip is ideal for quick and easy battery installation and replacement within projects. Contains stable mount legs for increased strength withstanding shocks and vibrations whilst retaining the coin cell battery securely. As used in our Electro Fashion range. Suitable for use with CR2032, CR2016, CR2020 and CR2025 Coin Cell batteries.
Features:
- Low profile for densely packed PCB’s.
- Nickel plated phosphorus bronze contacts.
- Through hole contacts.
- Reliable dual spring contacts.
Contents:
- 1 x 20mm Surface Mount Coin Cell Retainer.

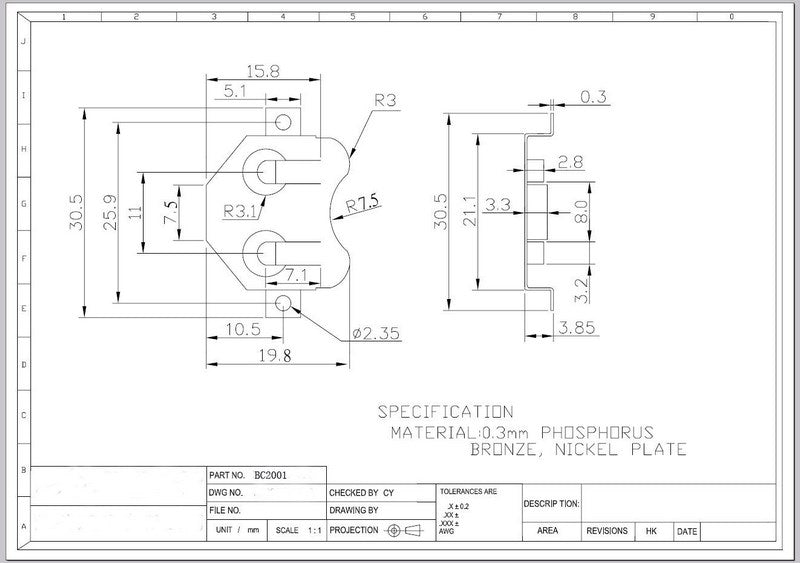

Dimensions:
- Length: 31mm.
- Width: 20mm.
- Height: 4mm.
Note:
- We normally have a large amount in stock as we use these in the manufacture of our Electro Fashion range. For bulk orders, please feel free to contact us.
