Maker UNO is an Arduino Compatible board specially designed to simplify building your projects: Coding & Electronics is made easy with the Maker UNO because it has built-in indicator LEDs (x12), buzzer and input button. The indicator LEDs make troubleshooting much easier.
Students/Makers can skip the hassle of constructing the basic electronic circuit which can be time-consuming. Although it is equally important to learn about basic electronics, it can always come later after they have experienced how easy it is to create an awesome project. Start with fun and excitement. Start coding right away and see your board lights up and plays the melody with the press of a button.

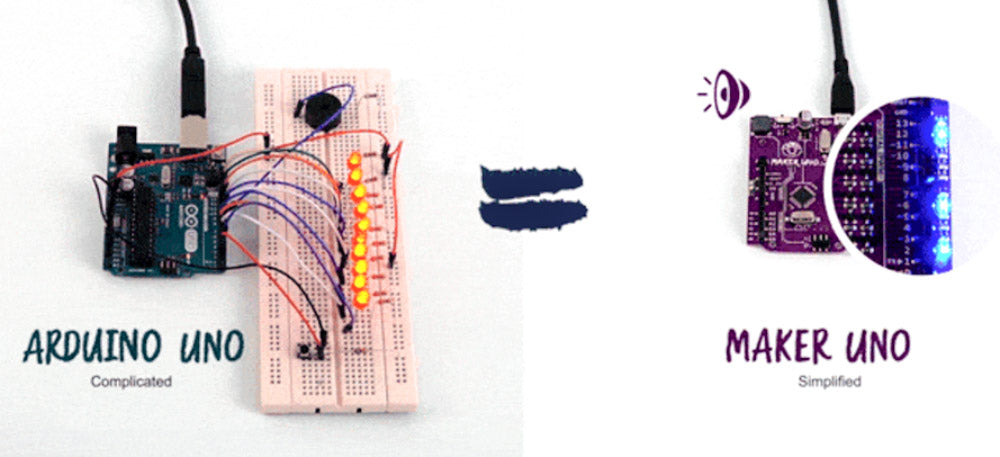

For experienced makers, this is also useful to quickly test your code without having to connect any other devices. With the conventional Arduino boards, makers also face another common problem – difficulty in troubleshooting their circuit. This is because when it doesn’t work, it can be difficult to know whether the problem is due to wire connection or coding.
With Maker UNO, the problem is solved! Not only do the onboard LEDs work as outputs, they can also act as indicators, clearly showing what’s happening on that pin. When the pin is used as input, you can clearly see whether the signal is received by just looking at changes on the LEDs.

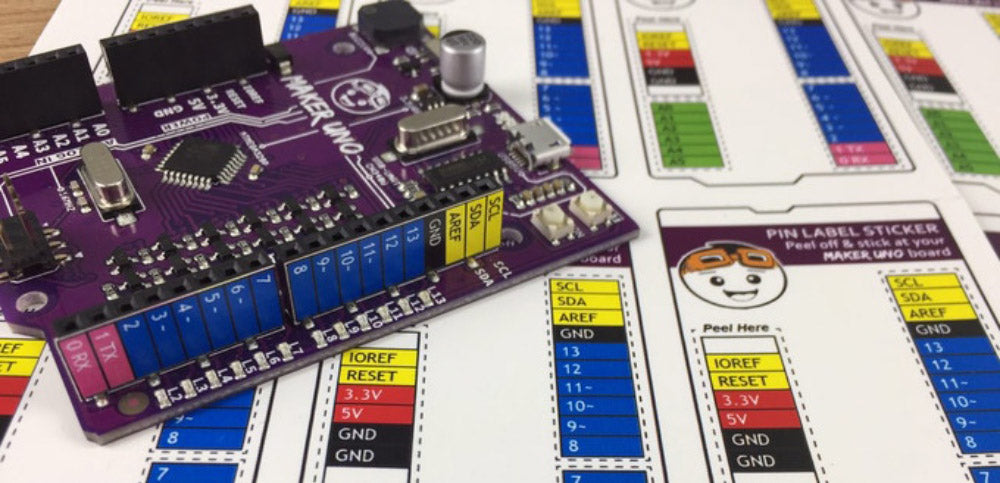

One of the popular features of the official Arduino Uno is the label printed on its pin headers. It saves us a lot of time when we want to connect the I/O pins to the external circuit. These are also included with the Maker UNO (Please note that you need to peel off the stickers and stick them on your Maker UNO by yourself).

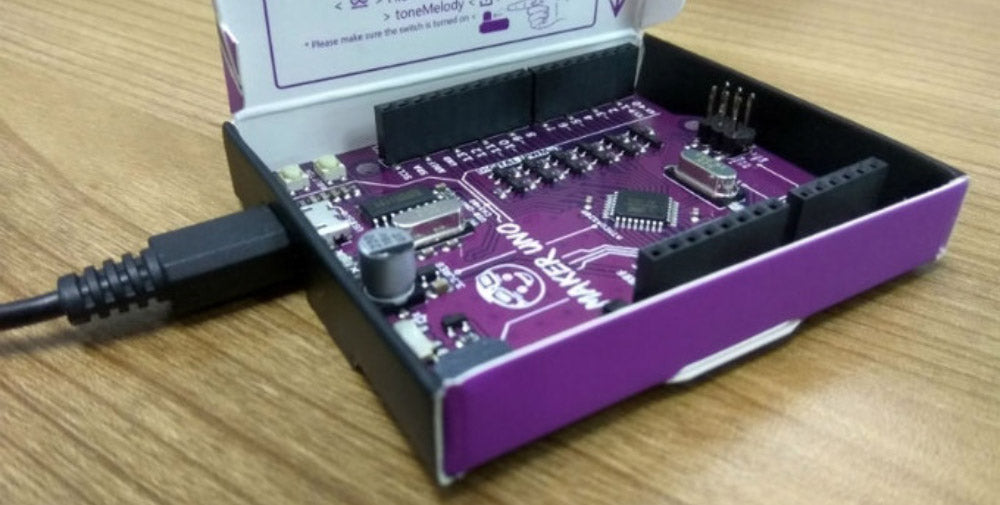

Don’t throw your box away! There is a small opening on the box for you to plug the USB cable so that you can keep your Maker UNO safely in the original box, no additional casing required.
Features:
- An Arduino board specially crafted for building projects while maintaining all the useful features of Maker UNO.
- With the help of 12 x LEDs, 1 x programmable push button and 1 x piezo buzzer, you can start coding and have some fun experimenting with Maker Nano right out-of-the-box without the hassle of wiring up any circuit.
- Learn Arduino and physical computing on a board that has been specifically designed for education.
- Each GPIO pin has a status LED which can also act as indicators, clearly showing what’s happening on that pin.
- It features a sounder with a dedicated on/off switch, a reset button and a programmable button.
- CE, FCC and RoHS compliant.
Contents:
- 1 x Maker UNO.
Video:
Video:
Resources:
- Maker UNO User’s Manual.
- Maker UNO Edu Kit Getting Started Module.
- Maker-UNO Schematic.
- Maker-UNO Fritzing File.
- Maker-UNO 3D file(IGS and STEP files).
- CH34X driver (Please ensure the Maker UNO is plug into computer USB port during driver installation).
